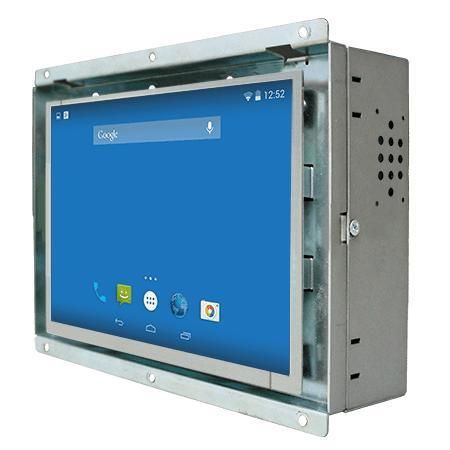

Resistive touch screen panel PC R05FA3S-OFD1

TFT LCD5.7"i.MX6 Cortex A9

Overview
Winmate R05FA3S-OFD1 is a 5.7-inch Open Frame Panel PC based on the NXP i.MX6 family (Dual Core 1.0 GHz; Quad Core optional). Built for machine control, industrial automation and operator HMI tasks, it provides fanless operation, onboard eMMC storage and flexible mounting for OEM integration.

Key Features

• 5.7-inch TFT LCD, 640 x 480, 900 nits
• Resistive touch optional or protective glass variant
• NXP i.MX6 A9 Dual Core 1.0 GHz (Quad Core optional)
• Onboard LPDDR3 1 GB (optional 2 GB) and eMMC 16 GB (optional 32 GB)
• Optional PoE PD (IEEE 802.3at)
• Fanless, low power design suitable for continuous operation

Product highlights

• Surface options: resistive touch or protection glass to match operator requirements.
• Integration-ready: open-frame construction supports rear, panel and VESA mounting for OEM enclosures.
• Expansion: mPCIe slot for wireless modules and configurable I/O for industrial interfaces.

Certifications

• CE
• FCC

I/O and Expansion

• USB: Mini USB console, USB OTG, 1 x USB 2.0 Type-A
• Serial: 1 x RS-232/422/485 (default RS-232)
• LAN: 1 x RJ45 with optional PoE (PD, IEEE 802.3at)
• Video: 1 x Micro HDMI (optional, supported on Android)
• Storage: 1 x Micro SD slot; onboard eMMC
• Audio: 2 x speakers
• Expansion: 1 x mPCIe slot (half-size for Wi‑Fi)
• Field bus: 1 x CANBUS (D-sub9)
• Power input: 12V DC via 2-pin terminal block

Mechanical & Environmental

• Dimensions: 160 x 129.6 x 54 mm
• Weight: approx. 0.7 kg
• Enclosure: metal housing, open-frame construction
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing

Accessories

• 100–240V AC to 12V DC adapter (typical)
• Power cord
• VESA mounting screws

Technical specifications

• Model: R05FA3S-OFD1
• Manufacturer: Winmate
• Processor: NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Memory: 1 GB LPDDR3 (default), 2 GB optional
• Storage: Onboard eMMC 16 GB (default), 32 GB optional
• Display: 5.7-inch, 640 x 480, 900 nits
• Touch: Resistive touch optional; protection glass option
• Mounting: Open Frame, Panel Mount, VESA Mount
• Power: 12V DC; adapter 12V 50W recommended; PoE PD IEEE 802.3at (25 W) optional
• OS options: Linux Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 + Qt 5.5
• Certifications: CE, FCC
