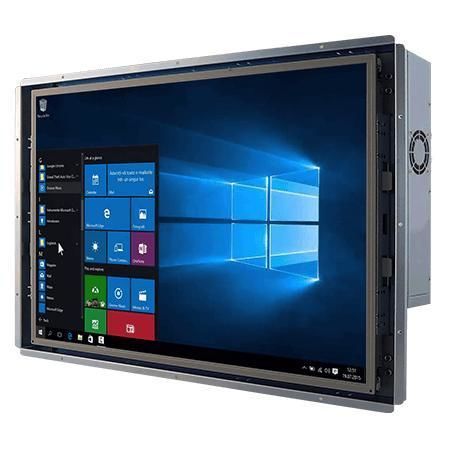

Panel PC with touch screen W18IF7T-OFA2

widescreenresistive touch screen18.5"

Overview
The W18IF7T-OFA2 is an 18.5-inch open-frame Panel PC engineered for machine control, factory automation and operator HMI integration. Based on Intel® 9th Gen Core™ i3/i5/i7 (Coffee Lake Refresh) processors, it targets OEMs and system integrators requiring modular storage, multiple I/O and long lifecycle availability.

Key features

• 18.5" 1366 x 768 resistive touchscreen (optional protection glass)
• Intel® 9th Gen Core™ i3/i5/i7 processors (default i7-9700TE)
• Flexible storage: M.2 (NVMe/SATA) + 2.5" SATA (HDD/SSD), RAID 0/1 support
• Multiple I/Os: 4 x USB 3.2 Gen1, 2 x Gigabit LAN, serial ports (RS232/422/485)
• 12 V DC lockable power input; DisplayPort and optional HDMI outputs

Display
18.5-inch display, 1366 x 768 resolution, 450 nits brightness, 1000:1 contrast ratio, active area 409.8 x 230.4 mm. Touch option: resistive; optional protection glass without touch.

System specification
Processor options: Intel Core i7-9700TE (default), i5-9500TE, i3-9100TE. Chipset: Intel® Q370. Memory: 2 x non-ECC SO-DIMM up to 64GB. Storage: default 128GB SSD, optional up to 2TB; 1 x M.2 2280/2242 M-Key; 2 x SATA III (2.5"). Ethernet: 2 x Intel® Gigabit controllers. TPM 2.0 supported. OS options: Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 20.04.

Mechanical
Dimensions 476 x 299 x 63 mm, weight 4.7 kg. Metal housing with fan cooling. Mounting: open-frame (default), panel mount or VESA mount optional.

Environment
Operating humidity 10%–90% RH non-condensing. Operating temperature 0°C to 50°C. Storage temperature -10°C to 60°C.

Certification
CE, FCC.

I/O ports

• 4 x USB 3.2 Gen1 Type-A
• 1 x RS232/422/485 (configurable) + 1 x RS232
• 2 x Giga LAN (RJ45)
• 1 x DP 1.2 (default), 1 x HDMI 1.4 (optional)
• Audio: Mic in, Line out, 2 x speakers
• Expansion: 1 x PCIe 3.0 x16, 1 x M.2 2280/2242 M-Key, 1 x M.2 2230 E-Key

Control
Power button and reset button; brightness adjustment knob; power and storage LEDs.

Accessories
100~240V AC to DC adapter, power cord, VESA screws.

Power
12V DC lockable power jack; typical adapter 12V 120W.

Additional product details
Provides modular surface options (resistive touch or protection glass), optimized thermal design for continuous operation and multiple mounting solutions for easy system integration.

Technical specifications

• Model: W18IF7T-OFA2
• Brand: Winmate
• Display size / resolution: 18.5" / 1366 x 768
• CPU family: Intel® 9th Gen Core™ (i3/i5/i7)
• Memory: up to 64GB (2 x SO-DIMM)
• Storage: M.2 + 2.5" SATA (RAID optional)
• LAN: 2 x Gigabit
• USB: 4 x USB 3.2 Gen1
• Serial: RS232/422/485 + RS232
• Video outputs: DP1.2 (default), HDMI optional
• Power input: 12V DC (Din4 lockable)
• Operating temperature: 0°C to 50°C
• Certifications: CE, FCC
