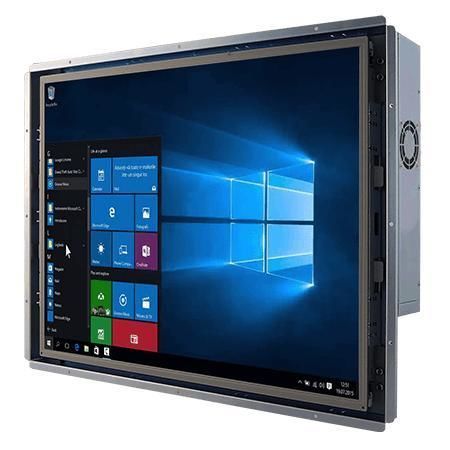

Resistive touch screen panel PC R19IF7T-OFA1

19"Intel® Core i3Intel® Core i7

Overview
Winmate R19IF7T-OFA1 is a 19-inch Open Frame Panel PC for machine control, factory automation and operator HMI. It supports 7th Gen Intel® Core™ i3/i5/i7 (Coffee Lake Refresh) processors and offers flexible storage, multiple I/O and long lifecycle availability for industrial, OEM and integrator projects.

Key features

• 19” 1280 x 1024 resistive touchscreen (optional protective glass)
• 7th Gen Intel® Core™ i3 / i5 / i7 processors (Coffee Lake Refresh)
• Flexible storage: M.2 SSD (2242/2280) and optional 2.5" SATA HDD/SSD (RAID 0/1)
• Multiple I/O: 2 x serial ports, 4 x USB 3.2 Gen1 Type-A, 2 x Gigabit LAN
• 12 V DC input with lockable Din4 connector
• Display support: DP up to 4096 x 2304 @ 60 Hz; HDMI optional

Overview - Highlights
Selectable resistive touch or protection glass. Low power consumption with fan-assisted cooling for stable operation in production environments. Multiple mounting options: Open Frame, panel mount and VESA.

Display
Size: 19.0 inches
Resolution: 1280 x 1024
Touch / Glass: Resistive Touch Screen (optional); Protection glass without touch (optional)
Panel Brightness: 400 nits
Contrast Ratio: 1000:1
View Angles: 85/85/80/80
Active Area: 376.32 x 301.06 mm

System specification
Processor: Intel Core i7-9700TE 1.8 GHz (up to 3.8 GHz) default; optional Core i5-9500TE or Core i3-9100TE
Chipset: Intel® B360 (default) or Intel® Q370 (optional, supports vPRO and NVMe)
Memory: 1 x SO-DIMM DDR4 2400 MHz (4GB default); configurable up to 64GB (single/dual SO-DIMM)
Storage: 1 x M.2 2242 B-key SSD default; optional M.2 2280 NVMe; optional 2 x SATA III for 2.5" drives
Ethernet: 2 x Intel® Gigabit controllers
Security: TPM 2.0
OS: Windows 10 IoT Enterprise (64-bit) optional; Linux (Ubuntu) optional
WLAN / Bluetooth: optional via M.2 E-key slot

Mechanical
Dimensions: 429 x 355 x 71 mm (verify SKU drawing for exact dims)
Weight: ~4.8 kg
Mounting: Open Frame, Panel Mount, VESA Mount
Enclosure: Metal housing
Cooling: Fan design

Environment
Operating Humidity: 10% to 90% RH, non-condensing
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -10 °C to 60 °C

Certification
CE, FCC

I/O and expansion

• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232 (configurable)
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP1.2 (default), 1 x HDMI 1.4 (optional)
• Audio: Mic in x1, Line out x1, Speaker x2
• Expansion: M.2 2280/2242 M-Key (NVMe/SATA), M.2 2230 E-Key (Wi‑Fi), PCIe 3.0 x16 (optional)
• Indicators/Controls: Power LED, Storage LED, Brightness knob, Power button, Reset button
• Power Input: 12V DC (lockable Din4); adapter 12V 120W (depending on SKU)

Accessories

• 100~240V AC to DC adapter (12V 120W depending on SKU)
• Power cord
• VESA screws (accessories vary by SKU)

Technical specifications

• Model: R19IF7T-OFA1
• Display: 19" 1280 x 1024, 400 nits, resistive touch (optional)
• CPU options: Intel® Core™ i7-9700TE / i5-9500TE / i3-9100TE
• Memory: DDR4 SO-DIMM up to 64GB
• Storage: M.2 NVMe/SATA + optional 2 x 2.5" SATA (RAID 0/1)
• LAN: 2 x Gigabit
• USB: 4 x USB 3.2 Gen1
• Serial: RS232/422/485 support (configurable)
• Video: DP1.2 (HDMI optional)
• Power: 12V DC (lockable)
• Mounting: Open Frame, Panel, VESA
• Operating: 0 °C to 50 °C; Storage: -10 °C to 60 °C
• Certifications: CE, FCC
