Touch screen panel PC R19IT7T-OFM1
5-wire resistive touch screenprojected capacitive touchscreen19"

Touch screen panel PC - R19IT7T-OFM1 - Winmate, Inc. - 5-wire resistive touch screen / projected capacitive touchscreen / 19"

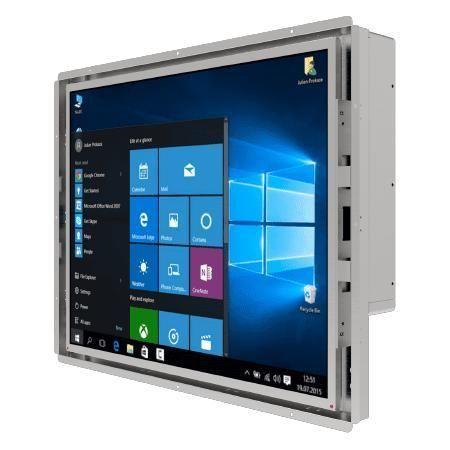

Touch screen panel PC - R19IT7T-OFM1 - Winmate, Inc. - 5-wire resistive touch screen / projected capacitive touchscreen / 19"
Touch screen panel PC - R19IT7T-OFM1 - Winmate, Inc. - 5-wire resistive touch screen / projected capacitive touchscreen / 19" - image - 2
Touch screen panel PC - R19IT7T-OFM1 - Winmate, Inc. - 5-wire resistive touch screen / projected capacitive touchscreen / 19" - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
projected capacitive touchscreen, 5-wire resistive touch screen, touch screen
Display size
19"
Processor
Intel® Core™ i5-1135G7, Intel® Tiger Lake-U
Resolution
1280 x 1024
Operating system
Linux® Ubuntu™, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, open frame
Mounting
VESA mounting
Applications
industrial, for self-service information kiosk
Protection level
IP65
Other characteristics
HMI, with external power adapter
Memory size

Max.: 64 GB

Min.: 0 GB

Description

Overview
  • Winmate R19IT7T-OFM1 is a 19-inch open-frame Panel PC built for machine control, factory automation and operator HMI. It targets OEMs, system integrators and industrial buyers who require reliable, low-power hardware with flexible I/O and mounting options.


Key features
  • Intel® Core™ Tiger Lake UP3 i5-1135G7 (non‑vPro) or i5-1145G7E (vPro option)
  • 1280 x 1024 resolution, 250 nits, 1000:1 contrast
  • Multi-display interfaces: DP 1.4 / HDMI 2.0 / LVDS / eDP
  • Rich I/O: serial ports, 4 x USB 3.2 Type-A, 1 x Gigabit + 1 x 2.5G RJ45
  • 12V DC main input (Din4); some SKUs support wide-range 9~36V DC
  • Fanless design for low power and reliable thermal behavior
  • Open-frame default with optional panel-mount and VESA mounting
  • Touch options: 5-wire resistive, optional projected capacitive (7H), or protection glass


Installation & operator convenience
  • Adjustable front bezel (2mm / 3mm / 6mm) with flat-front option and optional IP65 front protection
  • Rear and VESA mounting options for machine integration
  • Brightness adjustment knob, LED indicators for power and storage, power and reset buttons
  • Compact mechanical footprint: 445 x 355 x 71 mm; weight ~4.8 kg


Certifications
  • CE
  • FCC


Applications & expansion
  • Suitable for operator panels, embedded machine control, industrial kiosks and OEM applications
  • Expansion: M.2 2280 (NVMe), M.2 2230 (Wi‑Fi), PCIe 4.0 x16 (x4 signal) slot and optional SATA III 2.5"
  • Security: TPM 2.0; optional WLAN/BT modules; OS options include Windows 11 IoT Enterprise, Windows 11 Pro and Ubuntu 22.04


Technical specifications
  • Model: R19IT7T-OFM1
  • Display: 19.0" 1280 x 1024, 250 nits, 1000:1
  • Processor: Intel® Core™ i5-1135G7 (up to 4.2 GHz) / i5-1145G7E (optional)
  • Memory: 2 x non‑ECC SO‑DIMM, up to 64 GB
  • Storage: 128 GB SSD default; optional up to 4 TB; 1 x SATA III (optional)
  • LAN: 1 x Gigabit RJ45 + 1 x 2.5G RJ45
  • USB: 4 x USB 3.2 Gen (Type-A)
  • Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
  • Video: DP1.4 (default), HDMI 2.0 (optional)
  • Power: 1 x 12V DC Din4 (some SKUs 9~36V DC); adapter example 12V 120W
  • Mechanical: 445 x 355 x 71 mm; weight 4.8 kg
  • Operating temp/humidity: 0°C to 50°C; 10%–90% RH non‑condensing
