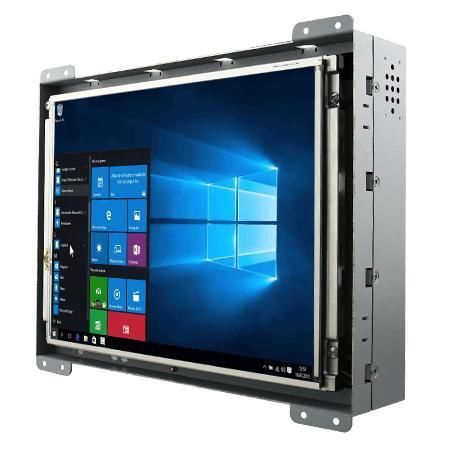

Resistive touch screen panel PC R10IE3S-OFT2

TFT LCD10.4"Intel® Celeron® N6211

Overview
Winmate R10IE3S-OFT2 is a 10.4-inch open-frame panel PC powered by the Intel® Celeron® Elkhart Lake N6211 processor. It is intended for machine control, factory automation and operator HMI and provides fanless cooling, low power consumption and multiple mounting and surface options.

Key features

• 10.4-inch TFT XGA (1024 x 768), 500 nits
• Intel® Celeron® N6211 (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4 (4 GB default)
• 2 x Intel® Ethernet controllers (2 x 2.5 Gbps)
• Supports 2 x SATA III, M.2 expansion, 2 x USB 3.2 Gen2, 4 x USB 2.0, 4 x COM (configurable)

Product highlights

• Touch / Glass options: resistive touch or optional protection glass without touch
• Mounting: open frame (default), panel mount and VESA mount options
• Fanless design for passive cooling and reduced maintenance
• Security: TPM 2.0 supported

Certifications

• CE
• FCC

Additional information

• Operating systems (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04
• Accessories: 12V 50W adapter (100–240V AC to DC), power cord, VESA screws

Specifications

• Display: 10.4 inches; Resolution: 1024 x 768 (XGA); Brightness: 500 nits; Contrast: 1000:1; View angles: 88/88/88/88; Active area: 210.4 x 157.8 mm
• Touch/Glass: Resistive touch (optional) / Protection glass without touch (optional)
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default; optional 8 GB or 16 GB; 1 x SO-DIMM, max. 16 GB DDR4
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB; 1 x SATA III for 2.5" SSD/HDD (optional); 1 x M.2 2242 B-Key (SATA III)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• USB & IO: 2 x USB 3.2 Gen2 (Type-A); 4 x USB 2.0; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2242 B-Key (for SATA III SSD); 1 x M.2 2230 E-Key (for Wi‑Fi module)
• Indicators & Controls: LED power, LED storage, brightness adjustment knob, 1 x power button, 1 x reset
• Power: Input 12V DC (2.5φ jack); adapter 12V 50W
• Mechanical: Dimensions 260 x 215 x 50 mm; Weight 1.9 kg; Enclosure: metal housing
• Mounting: Open frame (default); Panel mount (optional); VESA mount (optional)
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C
• Security & Certification: TPM 2.0; CE, FCC
