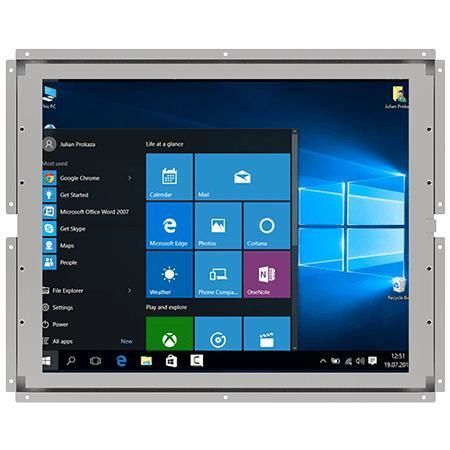

Resistive touch screen panel PC R17IT3S-OFM1

TFT LCD17"Intel® Core™ i5-1135G7

Overview
Winmate R17IT3S-OFM1 is a 17-inch Intel® Core™ i5-1135G7 Open Frame Panel PC designed for machine control, factory automation, and operator HMI. It targets industrial buyers, OEMs and system integrators requiring reliable hardware integration, fanless operation, energy efficiency and long lifecycle availability.

Key Features

• 17" TFT XGA LCD (1280 x 1024)
• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz) processor
• Fanless cooling system and ultra-low power design
• 1 x SO-DIMM DDR4 3200 MHz (Max. 32GB)
• Integrated dual Gigabit Ethernet (2 x Intel® Ethernet controller / 2 x 2.5G LAN)
• 1 x M.2 Key M slot for M.2 2242 SATA III SSD (optional M.2 2280 NVMe SSD)

Overview - Panel Options & Mounting

• Resistive touch screen (optional)
• Protective glass without touch (optional)
• Rear and VESA mounting options; open frame default (panel mount optional)

Certifications
CE, FCC

Display

• Size: 17.0 inches
• Resolution: 1280 x 1024 (XGA)
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Active Area: 337.920 x 270.336 mm
• Touch / Glass: Resistive Touch Screen (optional) or Protection Glass without touch (optional)

System Specification

• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB (default); optional 8 GB, 16 GB, 32 GB (SO-DIMM DDR4 3200 MHz, Max. 32GB)
• Storage: 128 GB SSD (default); optional 256 GB, 512 GB, 1 TB, 2 TB, 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet controller: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• Operating Systems (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 22.04 (note: Linux does not support Wake on Touch)
• WLAN / Bluetooth: supported as optional modules

Mechanical

• Dimension: 410 x 330 x 73 mm
• Weight: 4.5 kg
• Mounting: Open frame (default), panel mount (optional), VESA mount (optional)
• Enclosure: Metal housing
• Cooling system: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C

IO Ports & Expansion

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN (RJ45)
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x Speaker
• Expansion: 1 x M.2 2280 M-Key (for NVMe SSD), 1 x M.2 2230 E-Key (for Wi-Fi module)
• Indicators: 1 x LED for power, 1 x LED for storage
• Brightness control: 1 x Brightness Adjustment Knob
• Power Input: 1 x 12V DC, 2.5φ DC jack

Control & Buttons

• Buttons: 1 x Power Button, 1 x Reset Button

Accessories & Power

• Accessories included/optional: 100~240V AC to DC adapter, power cord, VESA screws
• Power rating: 12V DC
• Adapter: 12V 120W

Features Highlights (from product content)

• Designed for machine control, factory automation and operator HMI
• Fanless, low power consumption for durable long-term operation in industrial environments
• Flexible surface options (resistive touch or protective glass) to meet different application needs

Caractéristiques / spécifications techniques

• Model: R17IT3S-OFM1
• Display: 17" TFT XGA, 1280x1024, 350 nits
• CPU: Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Memory: SO-DIMM DDR4 3200 MHz, up to 32GB
• Storage: onboard SSD options (128GB default up to 4TB) + M.2 and SATA options
• LAN: Dual Intel® controllers, 2 x 2.5 Gbps
• Expansion: M.2 Key M (NVMe), M.2 E-Key (Wi-Fi)
• OS: Windows 11 IoT / Windows 11 Pro / Ubuntu 22.04 (optional)
• Mounting: Open frame (default), panel mount, VESA
• Dimensions / Weight: 410 x 330 x 73 mm / 4.5 kg
• Operating Temp / Humidity: 0°C to 50°C / 10% to 90% RH non-condensing
• Certifications: CE, FCC
