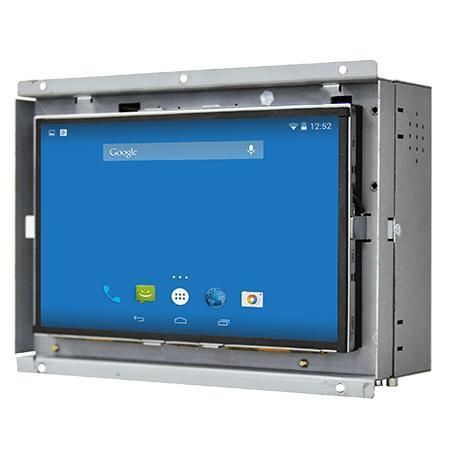

Panel PC with touch screen W07FA3S-OFT1

resistive touch screen7"dual-core

Overview
Winmate W07FA3S-OFT1 is a 7-inch NXP i.MX6 open-frame Panel PC designed for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators requiring reliable, fanless low-power embedded systems with long-lifecycle availability.

Key Features

• 7-inch 1024 x 600 TFT LCD with resistive touch (optional protection glass)
• Open-frame panel design with multiple mounting options
• NXP A9 i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Onboard 1 GB LPDDR3 (2 GB optional) and 16 GB eMMC (32 GB optional)
• Interfaces: 1 x USB 2.0 Type-A, 1 x USB OTG / Mini USB console, 1 x RS-232/422/485, 1 x Micro SD slot, 1 x Micro HDMI (optional)
• Optional PoE PD (IEEE 802.3at)
• Fanless design, metal housing and ultra-low power consumption

Highlights / Product Details
Resistive touch or optional protective glass adapts to industrial operator requirements. Low power design and efficient thermal management support continuous operation. Mounting options include open frame (default), panel mount and VESA mount for integration into machines or control panels. Optional wireless and CANBUS expansion via mPCIe and D-sub9 are available for system integration.

Certifications
CE, FCC

Images and Visual Features
Product visuals typically show the open frame construction, touch surface options, I/O placement, mounting variants and optional accessories such as AC adapter and VESA screws.

Technical specifications

• Model: W07FA3S-OFT1
• Brand: Winmate
• Type: Open Frame Panel PC 7"
• Processor: NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Memory: 1 GB LPDDR3 (default); 2 GB optional
• Storage: eMMC onboard 16 GB (default); 32 GB optional
• Operating System: Linux Ubuntu 18.04 (optional); Android 6.0 (optional); Debian 7.0 (optional); Linux 4.1.15 QT 5.5 (optional)
• WLAN / Bluetooth: optional via mPCIe module
• Display: 7.0 inch TFT LCD 1024 x 600; panel brightness 320 nits; contrast 1000:1; viewing angles 75/75/75/70; active area 153.6 x 90 mm
• Touch / Glass: Resistive touch screen (optional); protection glass without touch function (optional)
• Dimensions: 190 x 139.6 x 51.8 mm
• Weight: 1.2 kg
• Mounting: Open frame (default); Panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing
• Cooling: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB Ports: 1 x Console Port (Mini USB); 1 x USB OTG; 1 x USB 2.0 (Type-A)
• Serial Port: 1 x RS232/422/485 (default RS232)
• LAN: 1 x RJ45 with PoE (PD, IEEE 802.3at)
• Video: 1 x Micro HDMI (only supports Android system)
• Audio: 2 x Speaker
• SD Card Slot: 1 x Micro SD card slot
• Expansion: 1 x mPCIe slot (for Wi‑Fi module)
• CANBUS: 1 x CANBUS, D-sub9
• Power Input: 1 x 12V DC, 2-pin terminal block
• Power Rating: 12V DC
• Adapter: 12V 50W (accessory)
• PoE: PoE (PD) follows IEEE 802.3at (25 W)
• Accessories: 100~240V AC to DC adapter; power cord; VESA screws
