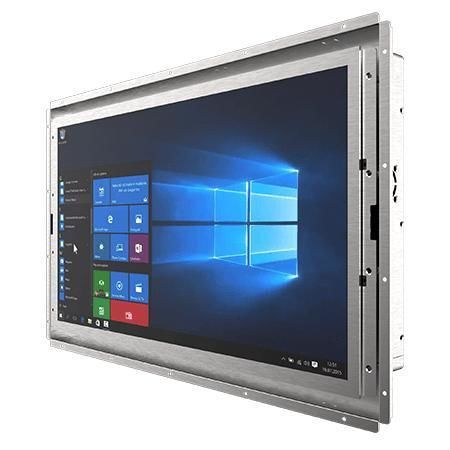

Resistive touch screen panel PC W18IT7T-OFA2

18.5"Intel® Core™ i5-1135G71366 x 768

Overview
Winmate W18IT7T-OFA2 is an 18.5-inch open-frame panel PC powered by Intel® Core™ i5 (Tiger Lake). Designed for machine control, factory automation and operator HMI, it provides long lifecycle availability, stable hardware integration and options tailored for industrial and OEM applications.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) / i5-1145G7E (with vPro)
• 1366 x 768 resolution, 450 nits brightness
• Multi-display support: DP / HDMI / LVDS / eDP
• Multiple I/O: 2 serial ports, 4 x USB 3.2 Type-A
• 12V DC single-voltage power input

Product Highlights

• Surface options: resistive touch (optional) or protection glass without touch (optional)
• Fanless design and low power consumption for continuous operation in industrial environments
• Mounting: open frame default; panel mount and VESA mount optional

Certifications
CE, FCC

Display

• Size: 18.5 inches
• Touch / Glass: Resistive touch (optional); Protection glass without touch (optional)
• Resolution: 1366 x 768
• Brightness: 450 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 85 / 85 / 80 / 80
• Active Area: 409.8 x 230.4 mm

System Specification

• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256 GB, 512 GB, 1 TB, 2 TB, 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: Dual Intel® controllers (1 x Gigabit + 1 x 2.5 Gigabit)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro (64-bit); Ubuntu 22.04 (no Wake on Touch)
• WLAN / BT: supported (optional)

Mechanical

• Dimensions: 476 x 299 x 63 mm
• Weight: 4.7 kg
• Mounting: Open frame (default); Panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C

IO Ports & Expansion

• USB: 4 x USB 3.2 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• LAN: 1 x Gigabit RJ45; 1 x 2.5 Gigabit RJ45
• Video: 1 x DisplayPort 1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators & Controls: power LED, storage LED, power button, reset button, brightness adjustment knob
• Power Input: 1 x 12V DC, DIN4 pin connector

Power & Accessories

• Power rating: 12V DC
• Adapter: 12V 120W (100~240V AC to DC adapter included)
• Accessories: power cord, VESA screws

Technical specifications

• Model: W18IT7T-OFA2
• Brand: Winmate
• Display: 18.5"; 1366 x 768; 450 nits; 1000:1
• Processor options: Intel® Core™ i5-1135G7 / i5-1145G7E
• Memory: up to 64 GB (2 x SO-DIMM)
• Storage options: 128 GB SSD default; up to 4 TB optional; SATA III 2.5" optional
• Network: 1 x Gigabit LAN, 1 x 2.5 Gigabit LAN
• Security: TPM 2.0
• Mounting: open frame / panel mount / VESA
• Enclosure: metal, fanless
• Operating conditions: 0°C–50°C; 10%–90% RH non-condensing
• Certifications: CE, FCC
• Power input: 12V DC (DIN4); adapter 12V 120W
• I/O summary: 4 x USB 3.x, serial ports, DP/HDMI, audio, M.2 slots, PCIe expansion
