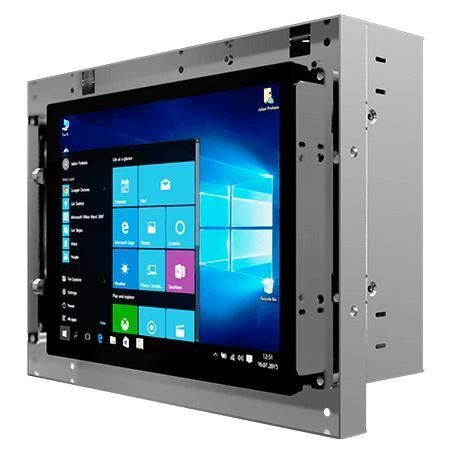

Resistive touch screen panel PC R06IE3S-OFA1

TFT LCD6.5"Intel® Celeron® N6211

Overview
Winmate R06IE3S-OFA1 is a 6.5" open-frame Panel PC powered by Intel® Celeron® N6211, developed for machine control, factory automation and operator HMI in embedded and industrial applications. It combines a fanless metal housing, low power consumption and multiple mounting options for OEM integration and long-term deployment.

Key features

• 6.5" TFT SVGA (640 x 480), 700 nits, 600:1
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, default 4 GB, up to 16 GB DDR4
• Storage: 128 GB SSD default; optional 256/512 GB, 1 TB, 2 TB; 1 x SATA III (2.5") and M.2 2242 B-Key
• Connectivity: 2 x 2.5 Giga LAN (Intel®), 2 x USB 3.2 Gen2x1, 4 x USB 2.0, 4 x COM
• Optional resistive touch or protection glass; TPM 2.0; optional WLAN/Bluetooth (M.2 2230 E-Key)

Highlights
Flexible surface choices (resistive touch or protection glass) allow adaptation to touch or non-touch installations. Open-frame default with optional panel or VESA mounting supports varied system integrations. Fanless metal enclosure provides reliable continuous operation and efficient heat dissipation. Broad OS support includes Windows IoT and Linux options.

Technical specifications

• Model: R06IE3S-OFA1
• Display: 6.5" SVGA, 640 x 480, active area 132.48 x 99.36 mm
• Memory: 4 GB default; 1 x SO-DIMM, max 16 GB DDR4
• Storage: 128 GB SSD default; optional up to 2 TB; 1 x SATA III (2.5"), 1 x M.2 2242 B-Key
• Ethernet: 2 x 2.5 Giga LAN RJ45 (Intel®)
• IO: 2 x USB 3.2 Gen2x1 (Type-A), 4 x USB 2.0, serial: RS232/422/485 options, HDMI 2.0 (optional)
• Security: TPM 2.0
• Wireless: M.2 2230 E-Key slot for Wi‑Fi/BT (optional)
• Dimensions / Weight: 190 x 142 x 50.6 mm / 1.1 kg
• Operating: 0°C to 50°C; Storage: -10°C to 60°C; Humidity: 10%–90% RH non-condensing
• Power: 12 V DC input; adapter 12 V 50 W
• Certifications: CE, FCC
