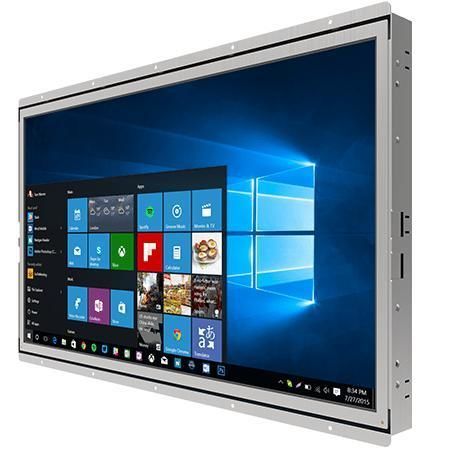

Resistive touch screen panel PC W22IT3S-OFA3

TFT LCD21.5"Intel® Core™ i5-1135G7

Overview
Winmate W22IT3S-OFA3 is a 21.5-inch industrial Open Frame Panel PC for machine control, factory automation and operator HMI. It integrates an Intel® Core™ i5-1135G7 processor, fanless cooling, flexible mounting (open frame default, optional panel or VESA) and long-lifecycle availability for industrial deployments.

Key features

• 21.5" TFT Full HD display (1920 x 1080), 250 nits, 3000:1 contrast
• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz)
• Fanless design and ultra-low power consumption
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Dual 2.5 Giga LAN (2 x Intel® Ethernet Controller)
• M.2 expansion: M.2 Key M for 2242 SATA III / optional 2280 NVMe; M.2 2230 E-Key for Wi‑Fi

Product details / Feature highlights

• Touch options: resistive touchscreen (optional) or protection glass without touch (optional)
• Active area: 476.64 x 268.11 mm; viewing angles 89/89/89/89
• Storage: 128 GB SSD default; optional 256 GB–4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Memory: 4 GB default; configurable to 8/16/32 GB
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 22.04 (optional)
• WLAN/Bluetooth supported via optional modules
• Metal enclosure suitable for industrial integration

I/O and expansion

• 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• 2 x 2.5 Giga LAN RJ45
• Video: HDMI 2.0 (optional)
• Audio: 2 x speaker
• Indicators: power and storage LEDs; brightness adjustment knob
• M.2 slots: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Power input: 12V DC (2.5φ DC jack)

Control / Buttons

• Power button
• Reset button

Mechanical

• Dimensions: 504 x 318 x 75 mm
• Weight: 5.5 kg
• Mounting: open frame (default), panel mount (optional), VESA mount (optional)
• Enclosure: metal housing

Environment

• Operating temperature: 0°C to 50°C
• Operating humidity: 10% to 90% RH, non-condensing
• Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

Accessories

• 100–240V AC to DC adapter
• Power cord
• VESA screws

Power

• Power rating: 12V DC; adapter 12V 120W

Specifications

• Model: W22IT3S-OFA3
• Display: 21.5 inches, 1920 x 1080, 250 nits, 3000:1
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB default, up to 32 GB DDR4 3200 MHz
• Storage: 128 GB SSD default; M.2 and SATA expansion
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN)
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Linux Ubuntu 22.04 (optional)
• IO: USB, serial, HDMI (optional), audio speakers
• Expansion: M.2 2280 M-Key, M.2 2230 E-Key
• Dimensions / Weight: 504 x 318 x 75 mm / 5.5 kg
• Mounting: open frame, panel mount, VESA
• Operating temp/humidity: 0°C to 50°C, 10%–90% RH
• Certifications: CE, FCC
