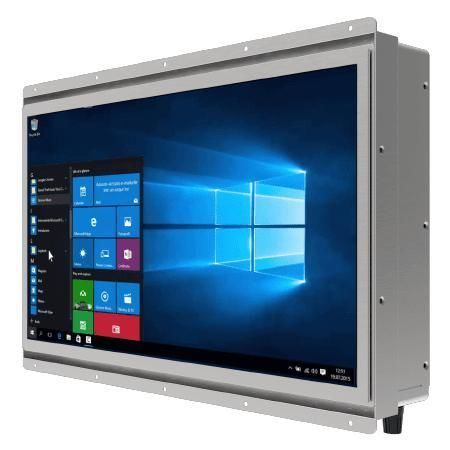

Resistive touch screen panel PC W15IT7T-OFA2

15.6"Intel® Core i5Intel® Core™ i5-1135G7

Overview
Winmate W15IT7T-OFA2 is a 15.6-inch open frame panel PC powered by Intel® Core™ i5 (Tiger Lake), engineered for machine control, factory automation and operator HMI tasks. It addresses requirements from industrial buyers, OEMs and system integrators for stable hardware integration, long lifecycle availability and continuous field operation.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (non-vPro) or i5-1145G7E (vPro)
• 1366 x 768 resolution, 400 nits brightness, 500:1 contrast
• Panel interfaces: DP / HDMI / LVDS / eDP for multi-display support
• Multiple I/O: serial ports, 4 x USB 3.2 Gen1 Type-A, Gigabit and 2.5G LAN
• 12V DC single-voltage power input; fanless thermal design

Highlights

• Front options: resistive touch screen (optional) or protective glass without touch (optional)
• Flexible mounting: open frame default; optional panel mount and VESA mount
• Security: TPM 2.0 support
• Expandable: M.2 NVMe, M.2 Wi‑Fi and PCIe expansion

Additional product notes
Display supports wide viewing angles and local brightness control via adjustment knob. System provides multiple LED indicators, Wake-on features depend on OS, and WLAN/Bluetooth available via optional M.2 module.

Technical specifications

• Model: W15IT7T-OFA2
• Display: 15.6 inches, 1366 x 768, 400 nits, 500:1, active area 344.232 x 195.536 mm
• Touch/Glass: Resistive touch (optional) or protective glass (optional)
• CPU: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD (default); optional 256/512 GB, 1/2/4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 1 x Gigabit RJ45, 1 x 2.5 Gigabit RJ45 (Intel controllers)
• I/O: 4 x USB 3.2 Gen1 Type-A; 1 x RS232/422/485 (default RS232) + 1 x RS232; 1 x DP1.4 (default); HDMI 2.0 optional; Mic-in, Line-out
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 (x16) slot (x4 signal)
• Power: 1 x 12V DC Din4 connector; adapter 12V 120W
• Dimensions / Weight: 366.3 x 248 x 68.5 mm / 3.6 kg
• Operating: 0°C to 50°C; 10% to 90% RH non-condensing
• Certifications: CE, FCC
