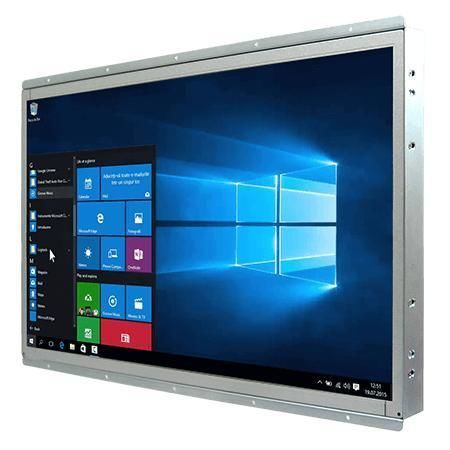

Resistive touch screen panel PC W15IAD7T-OFA2

LCD15.6"Intel® Core i3

Overview
The Winmate W15IAD7T-OFA2 is a 15.6" open frame panel PC built for machine control, factory automation and operator HMI. It accepts 12th/14th Gen Intel® Core™ processors (Alder Lake / Raptor Lake series) and offers flexible mounting, display and I/O configurations for industrial integration.

Key features

• 15.6" 1366 x 768 open frame display, 400 nits
• Intel® Core™ i9/i7/i5/i3 processor options (12th/14th Gen)
• 2 x SO-DIMM DDR5 4800MHz, up to 64GB (32GB per slot)
• Integrated dual Intel® 2.5GbE LAN
• Multi-display support: DP1.4a (default), HDMI2.0b (optional)
• 4 x USB 3.2 Gen2x1, serial ports, Mic-in/Line-out
• 12V DC power input (Din4 pin)

Product highlights and features (from overview content)
High-performance computing with configurable Intel® Core™ CPUs for industrial workloads. Surface options include resistive touch (optional) or protection glass without touch. Low power profile with fan-assisted cooling for continuous operation. Mounting: open frame (default), panel mount and VESA mount available.

Certifications
CE, FCC

Additional descriptive details
Display active area 344.232 x 195.536 mm; contrast ratio 500:1; viewing angles 85/85/80/80; supports up to 400 nits brightness.

System & Storage options

• Default CPU: Intel® Core™ i3-12100TE; optional i5/i7/i9 and newer T-series (e.g. i3-14100T, i9-14900T)
• Chipset: Intel® R680E
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; optional 2 x SATA III for 2.5" drives (RAID support)
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Security: TPM 2.0; Optional OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04

IO & connectivity

• USB: 4 x USB 3.2 Gen2x1 (Type-A, 10 Gbps)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN (RJ45)
• Video: 1 x DP1.4a DP++ (default, up to 4096x2160@60Hz); 1 x HDMI 2.0b (optional)
• Audio: Mic-in, Line-out

Mechanical & thermal

• Dimensions: 366.3 x 248 x 77.5 mm; Weight: 3.6 kg
• Enclosure: Metal housing; Cooling: fan design
• Mounting: Open frame (default), panel mount (optional), VESA mount (optional)

Environment

• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C–50°C; Storage: -10°C–60°C

Buttons & controls

• 1 x Power Button
• 1 x Reset Button

Accessories

• 100~240V AC to 12V DC adapter, power cord
• VESA screws

Technical specifications

• Model: W15IAD7T-OFA2
• Display: 15.6" 1366 x 768, 400 nits, 500:1, active area 344.232 x 195.536 mm
• Processors: Intel® Core™ i3-12100TE (default); optional i5/i7/i9 and newer T-series
• Memory: 2 x non-ECC SO-DIMM DDR5 4800MHz, up to 64GB
• Storage: 128GB SSD default; optional up to 4TB; optional 2 x SATA III (2.5" drives)
• Ethernet: 2 x Intel® 2.5G LAN
• Video/USB/Serial: DP1.4a, HDMI2.0b (opt.), 4 x USB3.2 Gen2x1, serial ports
• Power input: 1 x 12V DC (Din4 pin)
• Certifications: CE, FCC
