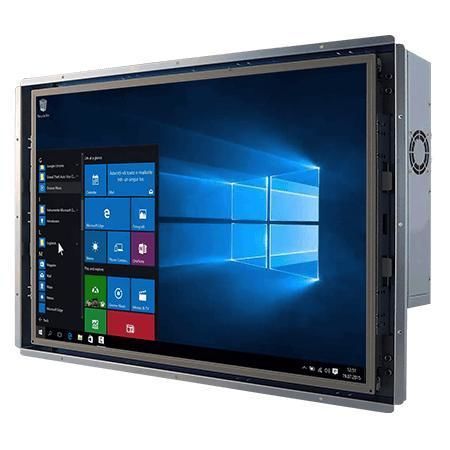

Resistive touch screen panel PC W18IP7T-OFA2

LCDTFT LCD18.5"

Overview
Winmate W18IP7T-OFA2 is an 18.5-inch Intel® Pentium® N4200 Open Frame Panel PC for machine control, factory automation and operator HMI. The unit is designed for low power consumption, fanless operation and flexible mounting options to support OEM and integrator installations.

Key features

• Intel® Pentium® N4200 (Apollo Lake) 1.10 GHz (burst up to 2.5 GHz)
• Flexible storage: 2.5" HDD bay, SSD options and M.2 sockets
• Multiple I/O: 4 x USB 3.0, 2 x Gigabit LAN, serial ports (RS232/422/485)
• 12 V DC input (Din4 connector)
• Display outputs: DisplayPort 1.2 (default), HDMI 1.4 and VGA optional
• Optional resistive touch or protection glass surface

Product presentation / highlights
Designed for continuous operation in industrial environments: fanless metal housing for effective heat dissipation, multiple mounting modes (open frame, panel mount, VESA) and configurable I/O for integration into machine control and automation systems.

Display

• Size: 18.5 inches
• Touch / Glass: Resistive touch (optional); Protection glass (optional, non-touch)
• Resolution: 1366 x 768
• Brightness: 450 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80
• Active area: 409.8 x 230.4 mm

System specification

• Processor: Intel® Pentium® N4200 1.1 GHz (up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM (non-ECC) up to 16 GB
• Storage: 128 GB SSD default; optional 256/512 GB, 1 TB; 2 x SATA III for 2.5" drives (optional, RAID support)
• Ethernet: 2 x Intel® Gigabit Ethernet controllers
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) and Linux variants optional
• Wireless: optional via M.2 2230 E-key

Mechanical

• Dimensions: 476 x 299 x 63 mm
• Weight: ~4.7 kg
• Mounting: Open frame (default); panel mount and VESA optional
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

I/O ports

• USB: 4 x USB3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232 (optional configs)
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP1.2 (default); HDMI 1.4 and VGA optional
• Audio: Mic in, Line out, 2 x speakers
• Expansion: M.2 2242 B-key (SATA SSD), M.2 2230 E-key (Wi‑Fi), PCIe 2.0 x1
• Indicators & control: Power and storage LEDs; brightness adjustment knob; Power and Reset buttons
• Power input: 1 x 12V DC (Din4)

Accessory

• Included/optional accessories: 100~240V AC to DC adapter, power cord, VESA screws, driver CD & manual (depending on configuration)

Power

• Power input: 12V DC
• Adapter example: 12V 84W

Technical specifications

• Model: W18IP7T-OFA2
• Brand: Winmate
• Display size: 18.5 inches
• Resolution: 1366 x 768
• Processor: Intel® Pentium® N4200
• Memory support: up to 16 GB SO-DIMM
• Default storage: 128 GB SSD; multiple options available
• LAN: 2 x Gigabit Ethernet
• Serial ports: RS232/422/485 support
• USB: 4 x USB3.0 Type-A
• Video outputs: DP1.2 (default), HDMI 1.4 (optional), VGA (optional)
• Mounting: Open frame / panel / VESA
• Dimensions & weight: 476 x 299 x 63 mm; ~4.7 kg
• Operating temp: 0°C to 50°C
• Certifications: CE, FCC
