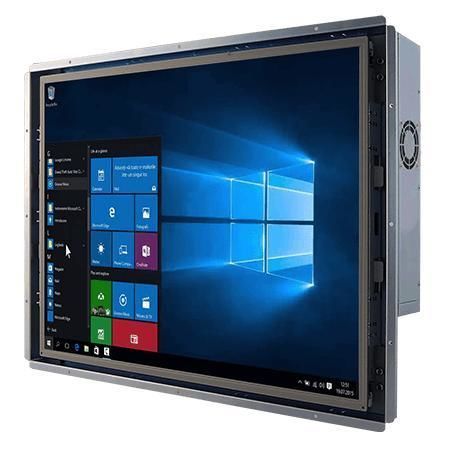

Resistive touch screen panel PC R19IAD7T-OFA1

19"Intel® Core™ i9-12900TEIntel® Core™ i7-12700TE

Overview
Winmate R19IAD7T-OFA1 is a 19-inch open-frame industrial panel PC powered by 12th/14th Gen Intel® Core™ processors (Alder Lake / Raptor Lake T variants). It is designed for machine control, factory automation and operator HMI applications requiring long lifecycle availability, flexible mounting and reliable field operation.

Key features

• 19-inch 1280 x 1024 open-frame display
• Intel® Core™ i3/i5/i7/i9 T-series options (12th/14th Gen)
• 2 x SO-DIMM DDR5 4800MHz, up to 64GB
• Dual integrated 2.5 Gigabit Ethernet
• Multi-display support: DP1.4a (standard), HDMI 2.0b (optional)
• Multiple I/O including 4 x USB 3.2 Gen2 Type-A, serial ports and audio
• 12V DC power input; fan-cooled metal enclosure

Product highlights
Reliable industrial panel PC for OEM integration and operator stations. Configurable with resistive touch or protective glass, multiple storage and OS options, TPM 2.0 support and optional wireless modules. Flexible mounting: open frame default, panel mount or VESA optional.

Certifications

• CE
• FCC

Mechanical & mounting
Metal housing with fan cooling. Dimensions 429 x 355 x 80 mm; weight 4.8 kg. Supports open frame (default), optional panel mount and VESA mount.

Accessories

• 100~240V AC to DC adapter
• Power cord
• VESA screws

Notes
Multiple storage, memory and OS configurations available. TPM 2.0 supported. Ethernet and wireless/Bluetooth modules are optional per configuration.

Technical specifications

• Model: R19IAD7T-OFA1
• Display: 19.0 inches, 1280 x 1024, 400 nits, 1000:1
• Processor: Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE; newer T-series options listed
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM DDR5 4800MHz, up to 64GB
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; optional 2 x SATA III for 2.5" SSD/HDD (RAID support)
• Ethernet: 2 x 2.5 Gigabit LAN RJ45
• USB: 4 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x DP1.4a (DP++); HDMI 2.0b optional
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi)
• Power input: 1 x 12V DC Din4 pin; adapter 12V 220W
• Buttons: Power and Reset
• Environment: Operating 0°C to 50°C; Humidity 10% to 90% RH non-condensing
• Certifications: CE, FCC
