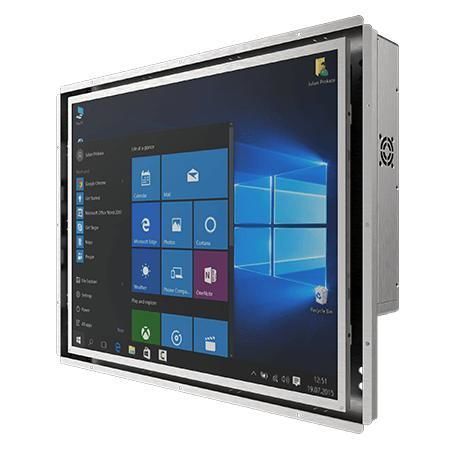

Resistive touch screen panel PC R19IT7T-OFA1

19"Intel® Core™ i5-1135G7Intel® Core™ i5-1145G7

AI Summary
Winmate R19IT7T-OFA1 is a 19.0-inch open-frame Panel PC with Intel® Core™ i5 (Tiger Lake), engineered for machine control, factory automation and operator HMI. It targets OEMs, system integrators and industrial buyers requiring long lifecycle availability, stable hardware integration and reliable field operation.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 19.0-inch display, 1280 x 1024 resolution, 400 nits
• Multi-panel support: DP / HDMI / LVDS / eDP
• Multiple I/O: serial ports, 4 x USB 3.2 Gen2x1 Type-A, Gigabit & 2.5 Gigabit LAN
• 12V single-voltage DC input; fanless metal housing

Display & Touch

• Options: Resistive touch screen or protection glass (no touch)
• Panel brightness 400 nits, contrast 1000:1, view angles 85/85/80/80
• Active area: 376.32 x 301.06 mm

System & Storage

• Processor: Intel Core i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB
• Storage: 128 GB SSD default; optional 256 GB–4 TB; 1 x SATA III for 2.5" SSD/HDD (optional); M.2 2280 NVMe slot
• Security: TPM 2.0; optional WLAN / BT (M.2 2230 E-Key)

I/O & Expansion

• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 1 x Gigabit RJ45; 1 x 2.5 Gigabit RJ45
• Video: 1 x DP1.4 (default); HDMI 2.0 optional
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 x16 slot (x4 signal)

Mechanical & Environment

• Dimensions: 445 x 355 x 71 mm; Weight: 4.8 kg
• Mounting: Open frame (default); panel mount or VESA mount optional
• Operating temp: 0°C to 50°C; storage: -10°C to 60°C; humidity 10%–90% RH non-condensing
• Metal housing, fanless design for industrial installations

Certifications & Accessories

• Certifications: CE, FCC
• Included/optional accessories: 100–240V AC to DC adapter (12V 120W), power cord, VESA screws
