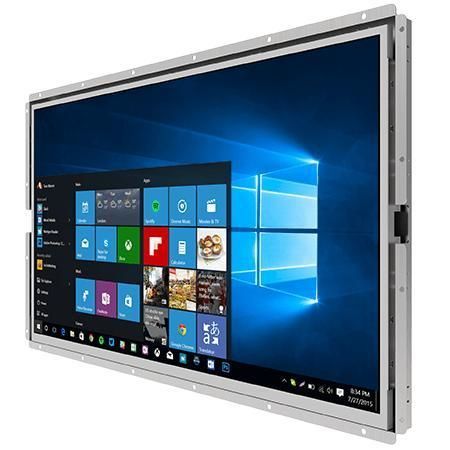

Resistive touch screen panel PC W24IT3S-OFA2

TFT LCD24"Intel® Core™ i5-1135G7

Overview
Winmate W24IT3S-OFA2 is a 24-inch Open Frame Panel PC powered by an Intel® Core™ i5-1135G7. Designed for machine control, factory automation and operator HMI, it targets industrial integrators and OEMs requiring fanless, low-power hardware with flexible mounting and long-term availability.

Key Features

• 24" TFT XGA / 1920 x 1080, 250 nits
• Intel® Core™ i5-1135G7 2.4 GHz (Turbo up to 4.2 GHz)
• Fanless cooling and ultra-low power design
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Dual Intel® Ethernet controllers (2 x 2.5 Gbps)
• M.2 Key M slot (M.2 2242 SATA III; optional M.2 2280 NVMe)

Display

• Size: 24.0 inches
• Touch / Glass: Resistive touch optional; Protection glass optional
• Resolution: 1920 x 1080
• Brightness: 250 nits
• Contrast Ratio: 3000:1
• Viewing Angles: 89/89/89/89
• Active Area: 527.04 x 296.46 mm

System Specification

• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default; options: 8 GB / 16 GB / 32 GB
• Storage: 128 GB SSD default; optional 256 GB–4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet: 2 x Intel® controllers (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (Ubuntu does not support Wake on Touch)
• WLAN / Bluetooth: optional

Mechanical

• Dimensions: 576.4 x 343.6 x 70 mm
• Weight: 6.3 kg
• Mounting: Open frame (default); panel mount and VESA mount optional
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Operating Humidity: 10% to 90% RH, non-condensing

Certification

• CE
• FCC

IO Ports

• USB: 2 x USB 3.2 Gen2x1 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x Speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: LED for power and storage
• Brightness Knob: 1 x Brightness Adjustment Knob
• Power Input: 1 x 12V DC, 2.5φ DC jack

Control

• Buttons: 1 x Power; 1 x Reset

Accessory

• 100~240V AC to DC adapter
• Power cord
• VESA screws

Power

• Power Rating: 12V DC
• Adapter: 12V 120W

Characteristics / Technical Specifications

• Model: W24IT3S-OFA2
• Brand: Winmate
• Display: 24.0" TFT, 1920x1080, 250 nits, 3000:1
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Memory: 4 GB default, up to 32 GB (1 x SO-DIMM DDR4 3200 MHz)
• Storage: 128 GB SSD default; M.2 NVMe support; SATA options
• Ethernet: Dual Intel® controllers (2 x 2.5 Gbps)
• Security: TPM 2.0
• Mounting: Open frame default; panel/VESA optional
• Dimensions / Weight: 576.4 x 343.6 x 70 mm / 6.3 kg
• Operating Temp/Humidity: 0°C–50°C / 10%–90% RH
• Certifications: CE, FCC
• Power Input: 12V DC (2.5φ jack); adapter 12V 120W
