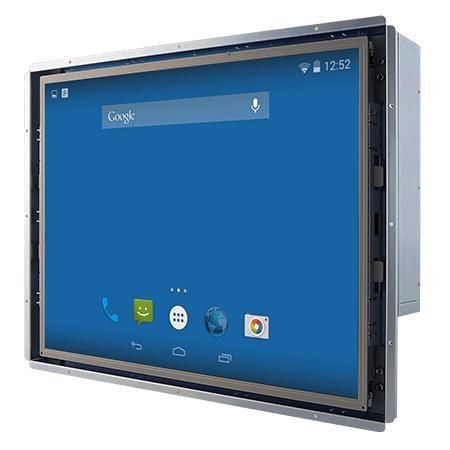

Resistive touch screen panel PC R19FA3S-OFM1

TFT LCD19"NXP i.MX6

Overview
Winmate R19FA3S-OFM1 is a 19-inch Open Frame Panel PC based on the NXP i.MX6 platform, designed for machine control, factory automation and operator HMI. It features a fanless, ultra-low-power design, metal housing and industrial-grade components for long lifecycle deployments.

Key features

• 19-inch 1280 x 1024 TFT LCD with resistive touchscreen or protection glass options
• NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Onboard LPDDR3 1 GB (2 GB optional) and eMMC 16 GB (32 GB optional)
• I/O: USB 2.0, RS-232/422/485, Micro SD, Mini USB (console), Micro HDMI (optional), RJ45 with optional PoE PD
• Fanless design for low power consumption and reliable continuous operation

Certifications

• CE
• FCC

Product highlights
Supports multiple optional operating systems (Linux Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 with Qt 5.5). Optional WLAN/BT via mPCIe slot and PoE PD support (IEEE 802.3at). Typical accessories include AC/DC adapter, power cord and VESA screws.

Technical specifications

• Model: R19FA3S-OFM1
• Processor: NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Memory: 1 GB LPDDR3 (default), 2 GB optional
• Storage: eMMC onboard 16 GB (default), 32 GB optional
• Display: 19.0 inches; 1280 x 1024; 250 nits; contrast ratio 1000:1; active area 376.32 x 301.06 mm
• Touch / Glass: Resistive touch (optional); protection glass (optional)
• Mechanical: 445 x 355 x 64.4 mm; weight 4.8 kg; metal housing; mounting: Open Frame, Panel Mount, VESA Mount
• Environment: Operating 0°C to 50°C; storage -10°C to 60°C; humidity 10%–90% RH non-condensing
• I/O Ports:
  • USB: 1 x Mini USB (Console), 1 x USB OTG, 1 x USB 2.0 Type-A
  • Serial: 1 x RS232/422/485 (default RS232)
  • LAN: 1 x RJ45 with PoE (PD, IEEE 802.3at)
  • Video: 1 x Micro HDMI (optional)
  • Audio: 2 x speaker
  • SD: 1 x Micro SD slot
  • Expansion: 1 x mPCIe slot (for Wi‑Fi module, half-size)
  • CANBUS: 1 x CANBUS D-sub9
• Power: 1 x 12 V DC input (2-pin terminal block); adapter 12 V 50 W; PoE PD 25 W (IEEE 802.3at)
• Accessories: 100–240 V AC to DC adapter, power cord, driver CD and manual, VESA screws
