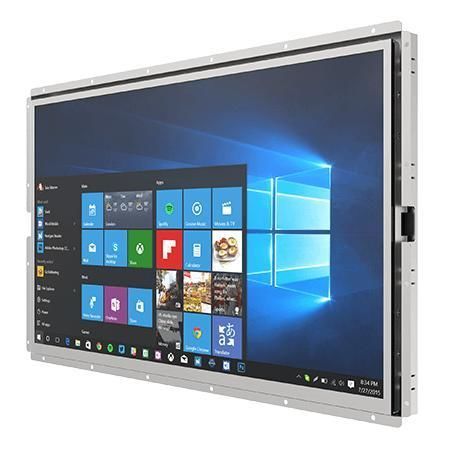

Resistive touch screen panel PC W24IF7T-OFA2

24"Intel® Core™ i7-9700TEIntel® Core™ i5-9500TE

Overview
Winmate W24IF7T-OFA2 is a 24-inch Open Frame Industrial Panel PC powered by Intel® 9th Gen Core™ processors (i3/i5/i7, Coffee Lake Refresh). It is intended for machine control, factory automation and operator HMI deployments requiring industrial-grade reliability, flexible mounting and long lifecycle availability.

Key Features

• 24” 1920 x 1080 resistive touchscreen (protection glass without touch optional)
• Intel® 9th Gen Core™ i3/i5/i7 (Coffee Lake Refresh)
• Flexible storage: 2.5" HDD bay, M.2 NVMe/SATA, SATA III (RAID 0/1 optional)
• Multiple I/Os: 2 x serial, 4 x USB 3.2 Gen1 Type-A, 2 x Gigabit LAN
• 12 V DC lockable Din4 power input; TPM 2.0 security; optional WLAN/Bluetooth

Product Details
Display

• Size: 24.0 inches
• Touch / Glass: Resistive touch screen (optional); Protection glass without touch (optional)
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Active Area: 527.04 x 296.46 mm

System Specification

• Processor options: Intel Core i7-9700TE (1.8 GHz, up to 3.8 GHz default); i5-9500TE and i3-9100TE optional
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per slot)
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB; M.2 2280/2242 M-Key (NVMe or SATA); 2 x SATA III for 2.5" drives
• Ethernet: Dual Intel® Gigabit controllers
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) / Linux Ubuntu options

Mechanical

• Dimensions: 576 x 344 x 69 mm (variants may be 615.4 x 392 x 81 mm depending on configuration)
• Weight: ≈ 6.3 kg
• Mounting: Open frame (default); panel mount and VESA optional
• Enclosure: Metal housing; Cooling: fan design

Environment

• Operating Humidity: 10%–90% RH, non‑condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C

Certification

• CE
• FCC

I/O Ports

• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP 1.2 (default); 1 x HDMI 1.4 (optional)
• Audio: Mic in, Line out, 2 x speakers
• Expansion: M.2 2280/2242 M-Key (NVMe/SATA), M.2 2230 E-Key (Wi‑Fi), PCIe 3.0 x16 optional
• Indicators & Controls: Power & storage LEDs; brightness adjustment knob; Power and Reset buttons
• Power Input: 1 x 12V DC lockable Din4 connector; accessory adapter 12V 120W

Accessories

• 100~240V AC to DC adapter (12V 120W)
• Power cord, VESA screws, driver CD & manual

Technical specifications

• Model: W24IF7T-OFA2
• Brand: Winmate
• Display: 24" FHD (1920x1080), resistive touch or protection glass
• CPU: Intel® Core™ i7/i5/i3 (Coffee Lake Refresh), default i7-9700TE
• Memory: 2 x SO-DIMM up to 64GB
• Storage options: M.2 NVMe up to 4TB (optional), 2 x SATA III for 2.5" drives (RAID 0/1 opt.)
• LAN: Dual Gigabit Ethernet
• Certifications: CE, FCC
