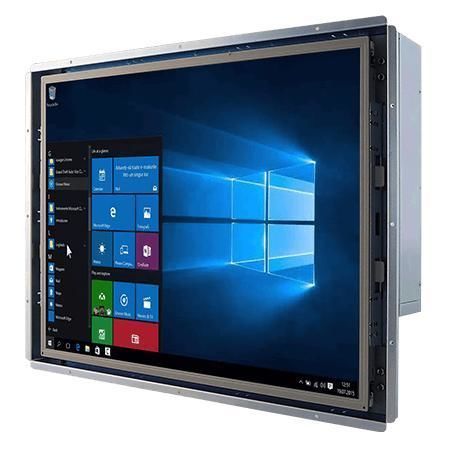

Resistive touch screen panel PC R19IP7T-OFA1

LCD19"Intel® Pentium® N4200

Overview
Winmate R19IP7T-OFA1 is a 19-inch open-frame industrial Panel PC designed for machine control, factory automation and operator HMI. It integrates an Intel® Pentium® N4200 (Apollo Lake) processor, fanless metal enclosure and flexible mounting options for OEM integration and continuous industrial operation.

Key features

• Intel® Pentium® N4200 (1.10 GHz base, up to 2.5 GHz burst)
• Flexible storage: default 128 GB SSD, optional 256/512 GB/1 TB, 2 x SATA III for 2.5" SSD/HDD, M.2 2242 B-key (SATA) and M.2 2230 E-key (Wi‑Fi)
• Multiple I/O: 4 x USB 3.0 (Type-A), 2 x Gigabit LAN, 2 x serial (RS232/422/485 configurable)
• Video: DisplayPort 1.2 (up to 4096 x 2160 @ 60 Hz), HDMI 1.4 (optional, up to 3840 x 2160 @ 30 Hz), VGA (optional)
• 12 V DC input (Din4 pin); fanless thermal design for low-noise continuous use

Display / Touch
19.0" industrial LCD, resolution 1280 x 1024, brightness 400 nits, contrast 1000:1, view angles 85/85/80/80, active area 376.32 x 301.06 mm. Touch options: resistive touch (optional) or protection glass without touch (optional).

System specification
Processor Intel® Pentium® N4200; memory dual-channel SO-DIMM up to 16 GB (non-ECC); storage options as above; Ethernet: 2 x Intel® Gigabit controllers; security: TPM 2.0. Optional OS: Windows 10 IoT Enterprise (64-bit) or Linux (Ubuntu). Wireless (WLAN) and Bluetooth available via M.2 module options.

Mechanical
Dimensions 445 x 355 x 71 mm; weight approx. 4.8 kg. Mounting: open frame (default), panel mount (optional), VESA mount (optional). Enclosure: metal housing; cooling: fanless.

Environment
Operating humidity 10%–90% RH non-condensing; operating temperature 0°C to 50°C; storage temperature -10°C to 60°C.

IO & Expansion

• USB: 4 x USB3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232 (configurable)
• LAN: 2 x Gigabit RJ45
• Video: DP1.2 (default), HDMI 1.4 (optional), VGA (optional)
• Audio: Mic-in, Line-out, 2 x speakers
• Expansion: M.2 2242 B-key (SATA SSD), M.2 2230 E-key (Wi‑Fi), PCIe 2.0 x1 slot

Certification
CE and FCC certified.

Accessories
Typical accessories: 100~240V AC to 12V DC adapter (12V 84W), power cord, VESA screws, driver CD & manual.

Technical specifications

• Model: R19IP7T-OFA1
• Display size: 19.0 inches; Resolution: 1280 x 1024; Brightness: 400 nits; Contrast ratio: 1000:1
• Processor: Intel® Pentium® N4200
• Memory: Dual-channel SO-DIMM up to 16 GB
• Storage: 128 GB SSD default; optional up to 1 TB; 2 x SATA III for 2.5" drives
• LAN: 2 x Intel® Gigabit Ethernet
• USB: 4 x USB 3.0 Type-A
• Serial: RS232/422/485 options
• Video: DP1.2, HDMI 1.4 (optional), VGA (optional)
• Power input: 12V DC (Din4 pin)
• Dimensions / Weight: 445 x 355 x 71 mm / approx. 4.8 kg
• Mounting: Open frame / Panel mount / VESA
• Certifications: CE, FCC
