Resistive touch screen panel PC R17IF7T-OFM1
17"Intel® Core™ i7-9700TEIntel® Core™ i5-9500TE

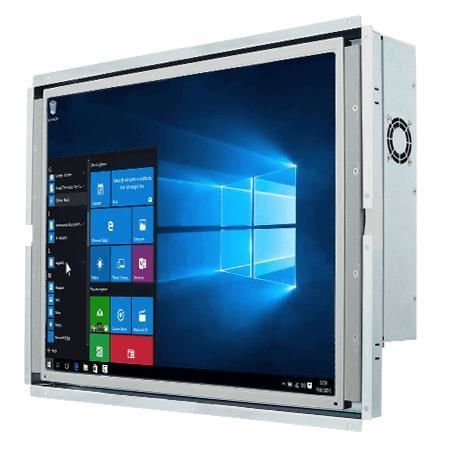

Resistive touch screen panel PC - R17IF7T-OFM1 - Winmate, Inc. - 17" / Intel® Core™ i7-9700TE / Intel® Core™ i5-9500TE
Resistive touch screen panel PC - R17IF7T-OFM1 - Winmate, Inc. - 17" / Intel® Core™ i7-9700TE / Intel® Core™ i5-9500TE
Resistive touch screen panel PC - R17IF7T-OFM1 - Winmate, Inc. - 17" / Intel® Core™ i7-9700TE / Intel® Core™ i5-9500TE - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
resistive touch screen
Display size
17"
Processor
Intel® Core™ i5-9500TE, Intel® Core™ i7-9700TE, Intel® Core™ i3-9100TE
Resolution
1280 x 1024
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise
Construction
open frame, plastic housing
Mounting
VESA mounting
Applications
industrial, for the food industry, for the mining industry, for the chemical industry
Other characteristics
Ethernet, RJ45, wireless, WiFi, Bluetooth, with external power adapter
Memory size

Min.: 0 GB

Max.: 64 GB

Description

Overview
  • Winmate R17IF7T-OFM1 is a 17-inch open frame Panel PC powered by Intel® 9th Gen Core™ processors (i3/i5/i7, Coffee Lake Refresh) for machine control, factory automation and operator HMI applications.


Key Features
  • 17" 1280 x 1024 resistive touchscreen (optional protective glass)
  • Intel® 9th Gen Core™ i3 / i5 / i7 (Coffee Lake Refresh)
  • Flexible storage: 2.5" HDD bay and M.2 SSD options
  • Multiple I/Os including 2x serial ports and 4x USB 3.2 Gen1 Type-A
  • 12V DC lockable power input
  • Display output: DP1.2 up to 4096 x 2304 @60Hz; HDMI optional


Overview — Product Highlights
  • Resistive touch with optional protective glass (cover glass option when touch is not required)
  • Low power consumption and effective heat dissipation for continuous operation in production facilities
  • Multiple mounting options: default open frame, optional panel mount and VESA mount


Certifications
  • CE
  • FCC


System & Options
  • Processor options: Intel Core i7-9700TE (default) / Core i5-9500TE / Core i3-9100TE
  • Chipset: Intel® Q370
  • Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
  • Storage: default 128GB SSD; optional 256GB/512GB/1TB/2TB; 2 x SATA III for 2.5" SSD/HDD; M.2 2280 M-Key NVMe or SATA
  • Ethernet: 2 x Gigabit Intel® controllers
  • Security: TPM 2.0
  • OS support: Windows 10 IoT Enterprise (64-bit) and Linux Ubuntu options
  • Wireless: optional WLAN/Bluetooth via M.2 2230 E-Key slot


Mechanical
  • Dimensions: 410 x 329 x 74 mm
  • Weight: 4.5 kg
  • Enclosure: metal housing
  • Cooling: fan design
  • Mounting: open frame (default); optional panel and VESA mounts


Environment
  • Operating humidity: 10%–90% RH, non‑condensing
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -10°C to 60°C


I/O Ports
  • USB: 4 x USB 3.2 Gen1 Type-A
  • Serial: 1 x RS232/422/485 (configurable, default RS232) + 1 x RS232
  • LAN: 2 x Gigabit LAN (RJ45)
  • Video: 1 x DisplayPort 1.2 (default); 1 x HDMI 1.4 (optional)
  • Audio: 1 x Mic In, 1 x Line Out, 2 x Speakers
  • Expansion: M.2 2280/2242 M-Key (NVMe/SATA), M.2 2230 E-Key (Wi‑Fi), optional PCIe 3.0 x16
  • Indicators & controls: LEDs for power/storage, brightness knob, power and reset buttons
  • Power input: 1 x 12V DC Din4 pin lockable connector; adapter example 12V 120W


Accessories
  • 100~240V AC to DC adapter
  • Power cord
  • VESA screws
  • Driver CD & manual (included/available)


Product Description Text (marketing / technical overview)
  • Open platform industrial PC offering a scalable architecture for PC-based control and automation. Supports common industrial communication protocols and is designed for harsh environments such as oil & gas, chemical processing, mining and food & beverage.
  • Features multi-core 64-bit Intel processors, multiple storage and expansion options, and dual Intel Gigabit networking for industrial HMI and IPC deployments requiring long lifecycle availability.


Technical specifications
  • Model: R17IF7T-OFM1
  • Brand: Winmate
  • Display size: 17.0 inches; Resolution: 1280 x 1024; Brightness: 350 nits; Contrast: 1000:1; Viewing angles: 85/85/80/80
  • Processor: Intel Core i7-9700TE / i5-9500TE / i3-9100TE
  • Chipset: Intel Q370
  • Memory: 2 x SO-DIMM DDR4, up to 64GB
  • Storage: M.2 (2242/2280) and 2 x SATA III for 2.5" SSD/HDD; optional RAID 0/1
  • Ethernet: 2 x Intel Gigabit
  • Security: TPM 2.0
  • OS support: Windows 10 IoT Enterprise (64-bit) / Linux Ubuntu
  • I/O: 4 x USB 3.2 Gen1, RS232/422/485, 2 x RJ45, DP1.2 (default), HDMI 1.4 (optional), audio in/out
  • Mechanical: 410 x 329 x 74 mm; Weight: 4.5 kg; Metal housing; Fan cooling
  • Mounting: Open frame (default), optional panel and VESA mounts
  • Environment: 0°C–50°C operating; -10°C–60°C storage; 10%–90% RH non-condensing
  • Certifications: CE, FCC
