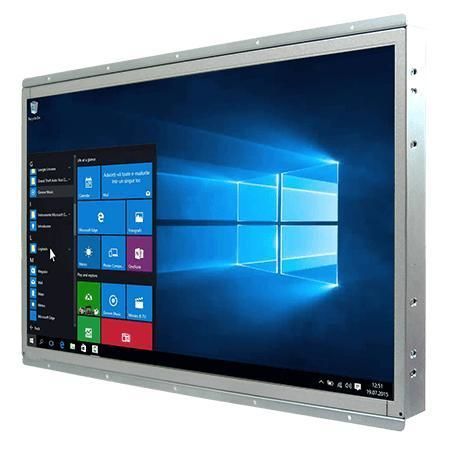

Resistive touch screen panel PC W22IAD7T-OFA3

LCD21.5"Intel® Core™ i9

Overview
Winmate W22IAD7T-OFA3 is a 21.5-inch open frame industrial panel PC designed for machine control, factory automation and operator HMI. It supports 12th/14th Gen Intel® Core™ processors and offers flexible I/O, dual 2.5GbE networking and multiple mounting options for long lifecycle industrial deployments.

Key features

• 21.5" FHD (1920 x 1080) open frame panel
• Intel® Core™ processors (i3 / i5 / i7 / i9 options; Alder Lake / Raptor Lake variants)
• 2 x SO-DIMM DDR5 4800MHz, up to 64GB
• Dual 2.5 Gigabit Ethernet
• Multi-display: DP 1.4a (default), HDMI 2.0b (optional)
• Multiple I/Os: 4 x USB 3.2 Gen2, serial ports, audio, expansion slots
• 12V DC power input

Product highlights / Features description
High-performance panel PC suitable for industrial HMI and machine control. Available with resistive touch or protective glass (no-touch) surface options. Engineered for efficient thermal management, low power consumption and configurable expansions (M.2 NVMe, Wi‑Fi module, SATA). Supports Open Frame by default with optional panel or VESA mounting.

Display
Size: 21.5 inches
Touch / Glass: Resistive touch screen (optional); Protection glass without touch (optional)
Resolution: 1920 x 1080
Brightness: 250 nits
Contrast ratio: 3000:1
Viewing angles: 89/89/89/89
Active area: 476.64 x 268.11 mm

System Specification
Processor options: Intel® Core™ i3-12100TE (default), optional i5-12500TE, i7-12700TE, i9-12900TE; optional newer T-series: i3-14100T, i5-14500T, i7-14700T, i9-14900T.
Chipset: Intel® R680E
Memory: 2 x non-ECC SO-DIMM DDR5 4800MHz, up to 64GB
Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; optional 2 x SATA III for 2.5" drives (RAID support)
Ethernet: Dual Intel® 2.5GbE controllers
Security: TPM 2.0
OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional; Wake on Touch not supported on Ubuntu)
Wireless: Optional WLAN/BT modules via M.2 2230 E-Key

Mechanical
Dimensions: 504 x 318 x 83 mm
Weight: 5.5 kg
Mounting: Open frame (default); panel mount (optional); VESA mount (optional)
Enclosure: Metal housing
Cooling: Fan design

Environment
Operating humidity: 10%–90% RH, non-condensing
Operating temperature: 0°C to 50°C
Storage temperature: -10°C to 60°C

Certifications
CE, FCC

I/O Ports
USB: 4 x USB 3.2 Gen2x1 (Type-A, 10 Gbps)
Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
LAN: 2 x 2.5 Giga LAN RJ45
Video: 1 x DP1.4a DP++ (default) up to 4096x2160@60Hz; 1 x HDMI 2.0b (optional) up to 4096x2160@60Hz
Audio: Mic in, Line out
Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
Power input: 1 x 12V DC, Din4 pin connector

Control & Accessories
Buttons: Power button, Reset button
Accessories: 100~240V AC to DC adapter; power cord; VESA screws
Adapter rating: 12V DC, 220W (example)

Use cases

• Machine control and factory automation
• Operator HMI panels in production lines
• OEM integration and embedded industrial solutions requiring long-term availability

Technical specifications

• Model: W22IAD7T-OFA3
• Display: 21.5" FHD (1920x1080), 250 nits, resistive touch optional
• CPU: Intel® Core™ i3/i5/i7/i9 (Alder Lake / Raptor Lake options)
• Chipset: Intel® R680E
• Memory: 2 x SO-DIMM DDR5 up to 64GB
• Storage: 128GB SSD default; optional NVMe and SATA options
• Ethernet: Dual 2.5GbE
• I/O: 4 x USB 3.2 Gen2, serial ports, DP1.4a (HDMI 2.0b optional), audio
• Power: 12V DC input (Din4); adapter 12V 220W
• Mounting: Open frame / Panel mount / VESA
• Dimensions / Weight: 504 x 318 x 83 mm / 5.5 kg
• Operating range: 0°C to 50°C; 10%–90% RH non-condensing
• Security: TPM 2.0
• Certifications: CE, FCC
