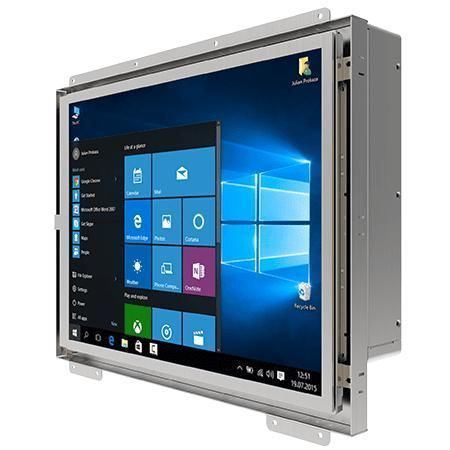

Resistive touch screen panel PC R15IT3S-OFC3

TFT LCD15"Intel® Core™ i5-1135G7

Overview
Winmate R15IT3S-OFC3 is a 15-inch open-frame panel PC built for machine control, factory automation and operator HMI. It integrates an Intel® Core™ i5-1135G7 processor, fanless cooling and flexible storage/memory options for OEM and system integrator deployments.

Key Features

• 15" TFT XGA (1024 x 768) display, 300 nits
• Intel® Core™ i5-1135G7 2.4 GHz (Turbo up to 4.2 GHz)
• Fanless design for low power and reduced maintenance
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Integrated dual Intel® Gigabit Ethernet (2 x 2.5 Giga LAN)
• M.2 Key M slot for M.2 2242 SATA III SSD; optional M.2 2280 NVMe

Display & Surface Options
Available with resistive touch screen (optional) or protection glass without touch function to suit different operator requirements and industrial environments.

Low Power and Cooling
Designed for low power consumption and efficient heat dissipation to support continuous operation in production facilities.

Mounting
Supports open-frame integration (default), panel mount (optional) and VESA mount (optional) for flexible installation in machines, kiosks or control panels.

Certifications

• CE
• FCC

Specifications

• Model: R15IT3S-OFC3
• Display Size: 15.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 1024 x 768 (XGA)
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• Active Area: 304.1 x 228.1 mm
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB (Default); optional 8/16/32 GB; 1 x SO-DIMM DDR4 3200 MHz (Max. 32 GB)
• Storage: 128 GB SSD (Default); optional 256/512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (Optional)
• Ethernet controller: 2 x Intel® Ethernet Controller (2.5 Giga LAN)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN / Bluetooth: Support (Optional via M.2 2230 E-Key)
• Dimensions: 357.6 x 292 x 62 mm
• Weight: 4.1 kg
• Enclosure: Metal housing
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (Default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (Optional)
• Audio: 2 x Speaker
• Expansion: 1 x M.2 2280 M-Key (for NVMe SSD); 1 x M.2 2230 E-Key (for Wi‑Fi module)
• Indicators: 1 x LED power; 1 x LED storage
• Brightness Control: 1 x brightness adjustment knob
• Power Input: 1 x 12 V DC, 2.5φ DC jack
• Power Rating / Adapter: 12 V DC; adapter 12 V 120 W (100~240 V AC to DC)
• Buttons: 1 x Power Button; 1 x Reset Button
• Accessories: 100~240 V AC to DC adapter; power cord; VESA screws
