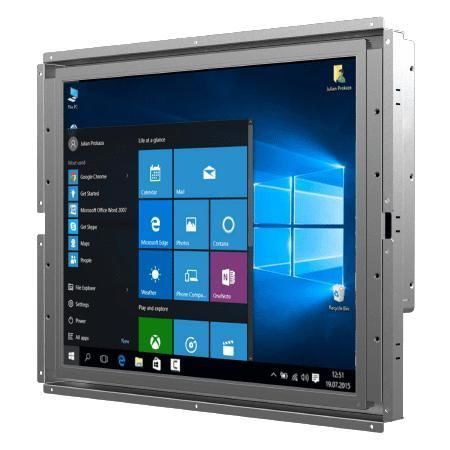

Resistive touch screen panel PC R17IP7T-OFM1

17"Intel® Pentium® N42001280 x 1024

Overview
Winmate R17IP7T-OFM1 is a 17-inch open-frame panel PC powered by Intel® Pentium® N4200 (Apollo Lake), engineered for machine control, factory automation and operator HMI. It addresses industrial buyers, OEMs and system integrators who need low-power, fanless hardware with flexible mounting and storage options.

Key features

• Intel® Pentium® N4200 (1.10 GHz, burst up to 2.5 GHz)
• Flexible storage: 128GB SSD default; optional 256/512GB/1TB; 2 x SATA III (2.5") and M.2 2242 B-key
• Multiple I/O: 4 x USB 3.0 (Type-A), 2 x Gigabit LAN, 2 x serial ports
• Video outputs: DisplayPort 1.2 (4096×2160@60Hz), HDMI 1.4 optional (3840×2160@30Hz)
• 12 V DC input (Din4) and fanless metal housing for industrial environments

Product details & highlights

• Display: 17.0", native 1280 x 1024, 350 nits, 1000:1 contrast, view angles 85/85/80/80, active area 337.920 x 270.336 mm
• Touch/glass options: resistive touch (optional) or protection glass without touch
• Memory: dual-channel SO-DIMM (non-ECC) up to 16 GB
• Security: TPM 2.0 supported
• Expansion: 1 x M.2 2242 B-key (SATA III), 1 x M.2 2230 E-key (Wi‑Fi), 1 x PCIe 2.0 x1
• Audio & controls: mic in, line out, 2 onboard speakers, LED indicators, brightness adjustment knob, power and reset buttons
• Mechanical: metal enclosure, fanless, dimensions 410 x 329 x 74 mm, weight ≈ 4.5 kg
• Mounting: open frame (default); panel mount and VESA mount optional
• Environment & certifications: operating 0°C to 50°C, 10%–90% RH non-condensing, storage -10°C to 60°C; CE, FCC
• Accessories: 100~240V AC to DC adapter (12V 84W), power cord, VESA screws, driver CD & manual

Applications

• Machine control and industrial automation
• Operator HMI panels and embedded industrial solutions
• OEM integration requiring long lifecycle, low power and stable hardware

Technical specifications

• Model: R17IP7T-OFM1
• Display size: 17.0"
• Resolution: 1280 x 1024
• Brightness: 350 nits
• Contrast ratio: 1000:1
• View angles: 85/85/80/80
• Active area: 337.920 x 270.336 mm
• Touch / Glass: Resistive touch (optional); protection glass (optional)
• Processor: Intel® Pentium® N4200 (1.10 GHz, up to 2.5 GHz)
• Memory: up to 16 GB DDR3L (dual-channel SO-DIMM)
• Storage: 128GB SSD default; optional 256/512GB/1TB; 2 x SATA III for 2.5" SSD/HDD; 1 x M.2 2242 B-key (SATA)
• Ethernet: 2 x Intel® Gigabit LAN (RJ45)
• USB: 4 x USB3.2 Gen1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232 (configurable)
• Video: 1 x DP1.2 (default); 1 x HDMI 1.4 (optional); 1 x VGA (optional)
• Audio: Mic in, Line out, 2 x Speaker
• Expansion: M.2 2242 B-key, M.2 2230 E-key, PCIe 2.0 x1
• Indicators & controls: Power LED, Storage LED, Brightness knob, Power & Reset buttons
• Power input: 1 x 12 V DC (Din4 pin); adapter 12 V 84 W
• Dimensions: 410 x 329 x 74 mm
• Weight: ~4.5 kg
• Operating temperature: 0°C to 50°C
• Operating humidity: 10%–90% RH (non-condensing)
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
