Resistive touch screen panel PC W10IE3S-OFH2
touch screenTFT LCD10.1"

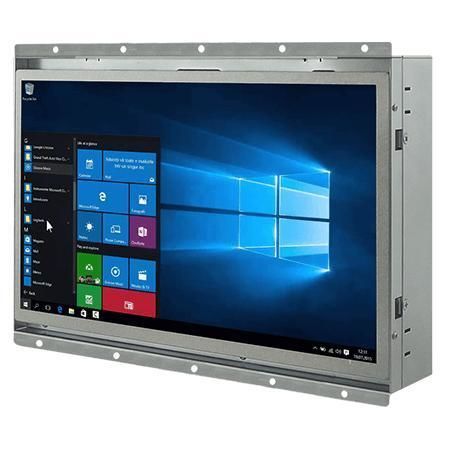

Resistive touch screen panel PC - W10IE3S-OFH2 - Winmate, Inc. - touch screen / TFT LCD / 10.1"
Resistive touch screen panel PC - W10IE3S-OFH2 - Winmate, Inc. - touch screen / TFT LCD / 10.1"
Resistive touch screen panel PC - W10IE3S-OFH2 - Winmate, Inc. - touch screen / TFT LCD / 10.1" - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
TFT LCD, resistive touch screen, touch screen
Display size
10.1"
Processor
Intel® Celeron®, Intel® Celeron® N6211
Resolution
1280 x 800
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, open frame, metal chassis, plastic housing
Mounting
VESA mounting
Applications
industrial
Other characteristics
Ethernet, RJ45, with external power adapter
Memory size

Min.: 4 GB

Max.: 16 GB

Description

Product overview
  • Winmate W10IE3S-OFH2 is a 10.1-inch Open Frame Industrial Panel PC designed for machine control, factory automation and operator HMI integration for OEMs and system integrators.
  • Display: 10.1 inches TFT LCD, 1280 x 800, 350 nits brightness, 800:1 contrast, active area 216.96 x 135.6 mm.
  • Compute: Intel® Celeron® N6211 (Elkhart Lake) up to 3.0 GHz; memory: 1 x SO-DIMM DDR4 3200 MHz (4GB default; 8GB/16GB optional, max 16GB).
  • Storage: M.2 2242 B-Key SSD 128GB default (256GB/512GB optional); optional SATA III for 2.5" SSD/HDD up to 1TB.


Key features
  • 10.1-inch TFT LCD with resistive touch or protective cover glass options
  • Intel® Celeron® N6211 processor; fanless thermal design
  • 2 x Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45)
  • 1 x SO-DIMM (up to 16GB), M.2 expansion and optional Wi‑Fi via M.2 2230 E-Key
  • Wide I/O: 2 x USB 3.2 Gen2x1, 4 x USB 2.0, up to 4 x COM, HDMI 2.0 optional
  • Security: TPM 2.0 supported; metal housing for industrial deployment


Product highlights / description
  • Flexible mounting: open frame, panel mount and VESA mount to accommodate different integration scenarios.
  • Low power consumption and efficient heat dissipation for continuous operation in production environments.
  • Touch options and protective glass variants to match operator requirements and harsh environments.
  • Optional OS support: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04.


Specifications
  • Model: W10IE3S-OFH2
  • Brand: Winmate
  • Display: 10.1 inches, 1280 x 800, 350 nits, 800:1, active area 216.96 x 135.6 mm
  • Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
  • Memory: 1 x SO-DIMM DDR4 3200 MHz (4GB default; 8GB/16GB optional; max 16GB)
  • Storage: 1 x M.2 2242 B-Key SSD 128GB default; 256GB/512GB optional; 1 x SATA III for 2.5" SSD/HDD up to 1TB (optional)
  • Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
  • USB: 2 x USB 3.2 Gen2x1 (Type-A); 4 x USB 2.0
  • Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
  • Video: 1 x HDMI 2.0 (optional)
  • Audio: 2 x Speaker
  • Expansion: 1 x M.2 2242 B-Key (SATA III SSD); 1 x M.2 2230 E-Key (Wi‑Fi)
  • Indicators & controls: LED power, LED storage, power button, reset button, brightness adjustment knob
  • Power input: 1 x 12V DC, 2.5φ DC jack; adapter 12V 50W
  • Mounting: Open Frame, Panel Mount, VESA Mount
  • Dimensions: 239 x 174 x 47.4 mm; Weight: 1.3 kg
  • Enclosure: Metal housing; Cooling: fanless
  • Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C; Operating humidity: 10% to 90% RH non-condensing
  • Security: TPM 2.0; Certifications: CE, FCC
  • Included accessories: 100~240V AC to DC adapter, power cord, VESA screws
