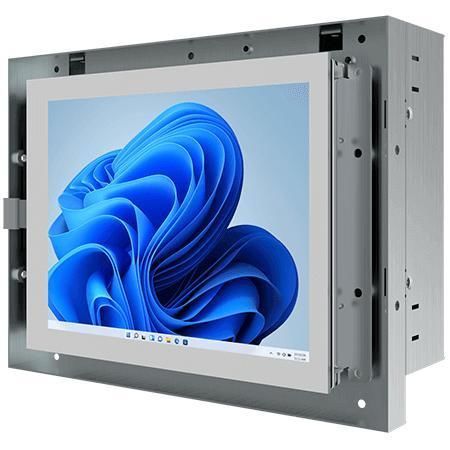

Resistive touch screen panel PC R06IAN3S-OFA1

touch screenTFT LCD6.5"

Product Overview
Winmate R06IAN3S-OFA1 is a 6.5 inches Intel Alder Lake-N N150 open frame industrial panel PC designed for machine control, factory automation, and operator HMI. It provides scalable performance, stable I/O connectivity, and long lifecycle availability for embedded and industrial applications.

Key Features

• 6.5 inches SVGA TFT LCD
• Intel Alder Lake-N N150 processor (optionally N100)
• 1 x SO-DIMM DDR5-4800, up to 16 GB
• 2 x 2.5 Gigabit Ethernet
• Supports 1 x HDMI, 1 x USB 3.2 Type-C with DP-Alt, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0, 4 x COM
• Supports VESA mount; open frame design

Certifications

• CE
• FCC

Overview Details
The product delivers dependable computing and visual performance for automation and monitoring applications. It supports real-time data processing and smooth graphics rendering via integrated Intel UHD graphics. The design emphasizes versatile I/O for easy integration, high-speed communication with dual 2.5 Gigabit Ethernet, and multiple mounting options to fit embedded installations.

Technical Specifications

• Display: 6.5 inches SVGA TFT LCD; resolution 640 x 480; panel brightness 700 nits; contrast ratio 600:1; view angles 80,80,70,70; active area 132.48 x 99.36 mm; touch options: resistive touch screen (optional) or protection glass without touch (optional).
• Processor: Intel Processor N100 6M Cache up to 3.40 GHz (default); Intel Processor N150 6M Cache up to 3.60 GHz (optional).
• Memory: 1 x SO-DIMM DDR5-4800; 4 GB default; optional 8 GB or 16 GB; maximum 16 GB.
• Storage: 128 GB SSD default; optional 256 GB, 512 GB, 1 TB, 2 TB, 4 TB; 1 x SATA III for 2.5 inches SSD/HDD up to 2 TB (only when NVME SSD is not present).
• Ethernet: 2 x Intel 2.5 Gigabit Ethernet controller (2 x 2.5 Giga LAN RJ45).
• Security: TPM 2.0.
• Operating System: Windows 11 IoT Enterprise 64-bit (optional); Windows 11 Pro 64-bit (optional); Linux Ubuntu 24.04 (optional, does not support Wake on Touch).
• Wireless: WLAN support optional (M.2 2230 E-Key slot for Wi-Fi module); Bluetooth support optional.
• Mechanical: Dimensions 190 x 142 x 50.6 mm; weight 1.1 kg; enclosure metal housing; cooling fanless design.
• Mounting: Open frame (default); panel mount optional; VESA mount optional.
• Environmental: Operating humidity 10% to 90% RH non-condensing; operating temperature 0°C to 50°C; storage temperature -10°C to 60°C.
• Certifications: CE, FCC.
• IO Ports: USB: 2 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen2 Type-C (supports DP Alt mode), plus additional USB 2.0 ports listed elsewhere on page; Serial: 1 x RS232/422/485 (default RS232) and 1 x RS232; Video: 1 x HDMI 2.0b optional; Audio: 2 x speaker; Expansion: 1 x M.2 2230 E-Key slot (for Wi-Fi module); Indicators: 1 x LED for power, 1 x LED for storage; Power input: 1 x 12V DC via 2.5 mm DC jack.
• Control: 1 x power button; 1 x reset button.
• Accessory: 100~240V AC to DC adapter; power cord; VESA screws.
• Power: Power rating 12V DC; adapter 12V 50W.
