Resistive touch screen panel PC W22IF7T-OFA3

21.5"Intel® Core™ i7-9700TEIntel® Core™ i5-9500TE

Overview

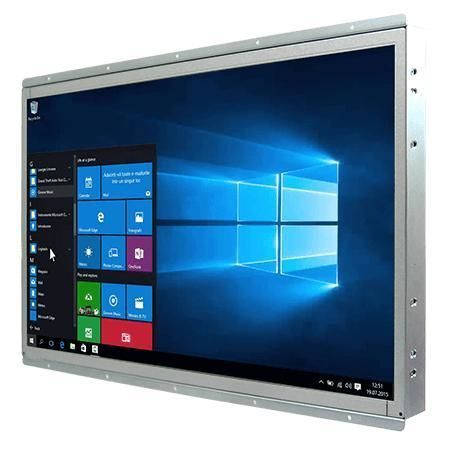

Winmate W22IF7T-OFA3 is a 21.5-inch open-frame Panel PC engineered for industrial HMI, machine control and factory automation. Based on Intel® Core™ i3/i5/i7 (Coffee Lake Refresh) platforms, it provides a Full HD 1920 x 1080 display, flexible storage and expansion, industrial-grade I/O and mounting options for integration into OEM and embedded systems.

Key features

• 21.5" 1920 x 1080 display, optional resistive touchscreen or protection glass
• Intel® 9th Gen Core™ i3 / i5 / i7 (Coffee Lake Refresh)
• Flexible storage: M.2 NVMe/SATA and 2.5" SATA (RAID 0/1 supported)
• Multiple I/Os: 4 x USB 3.2 Gen1 (Type-A), 2 x Gigabit LAN, 2 x serial ports
• 12 V DC lockable power input; DisplayPort and optional HDMI output

Product details
The unit supports open-frame mounting by default and offers optional panel-mount and VESA mounting for versatile installation. It includes TPM 2.0 for platform security and optional wireless via M.2 E-Key. Thermal design and a low-power platform permit continuous operation in production environments.

Technical specifications

• Model: W22IF7T-OFA3
• Display size / Resolution: 21.5" / 1920 x 1080
• Touch / Glass: Resistive touch (optional); protection glass without touch (optional)
• Panel brightness / Contrast / Viewing angles: 250 nits / 3000:1 / 89/89/89/89
• Active area: 476.64 x 268.11 mm
• Processor (examples): Intel® Core™ i7-9700TE (1.8 GHz, up to 3.8 GHz) default; i5-9500TE; i3-9100TE (options)
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB / 2 TB; M.2 2280 M-Key (NVMe/SATA); 2 x SATA III for 2.5" drives (RAID 0/1)
• Ethernet: 2 x Intel® Gigabit controllers
• Security: TPM 2.0
• OS (optional): Windows 10 IoT Enterprise (64-bit); Linux Ubuntu (18.04 / 20.04)
• WLAN / BT: optional (M.2 2230 E-Key)
• Dimensions / Weight: 504 x 318 x 74 mm / approx. 5.5 kg
• Mounting: Open frame (default); panel mount / VESA mount optional
• Enclosure / Cooling: Metal housing; fan design
• Operating / Storage temp.: 0 °C to 50 °C / -10 °C to 60 °C
• Operating humidity: 10% to 90% RH, non-condensing
• Certifications: CE, FCC
• I/O: 4 x USB 3.2 Gen1 (Type-A); 1 x RS232/422/485 (default RS232) + 1 x RS232; 2 x RJ45 Gigabit LAN; 1 x DP1.2 (default); 1 x HDMI 1.4 (optional)
• Audio: Mic-in, Line-out, 2 x speakers
• Expansion: M.2 2280/2242 M-Key, M.2 2230 E-Key, optional PCIe 3.0 x16
• Indicators & controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Power input / Adapter: 1 x 12 V DC Din4 lockable connector; adapter 12 V 120 W
• Accessories: AC 100~240 V to DC adapter, power cord, VESA screws, manual
