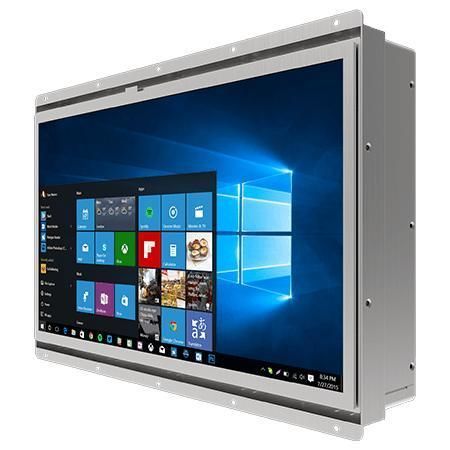

Resistive touch screen panel PC W15IT3S-OFA2

15.6"Intel® Core™ i5-1135G71366 x 768

Overview
Winmate W15IT3S-OFA2 is a 15.6-inch open-frame panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz). It is designed for machine control, factory automation and operator HMI applications, targeting OEMs and system integrators requiring long lifecycle availability and stable hardware integration.

Key features

• 15.6" TFT XGA (1366 x 768) display, 400 nits brightness
• Intel® Core™ i5-1135G7 CPU (2.4 GHz, up to 4.2 GHz)
• Fanless cooling and ultra-low power design
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Dual integrated Ethernet: 2 x 2.5 Giga LAN RJ45
• M.2 storage: 1 x M.2 Key M (2242 SATA III) and optional M.2 2280 NVMe

Product details

• Surface options: resistive touch screen (optional) or protection glass without touch (optional)
• Mounting: open-frame default; rear panel mount and VESA mount available
• Low power consumption and fanless design suitable for continuous operation in production environments
• Security: TPM 2.0; optional WLAN/BT via M.2 2230 E-Key

Certifications

• CE
• FCC

Technical specifications

• Model: W15IT3S-OFA2
• Brand: Winmate
• Display size: 15.6 inches
• Resolution: 1366 x 768 (XGA)
• Panel brightness: 400 nits
• Contrast ratio: 500:1
• View angles: 85, 85, 80, 80
• Active area: 344.232 x 195.536 mm
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB default; options 8/16/32 GB; 1 x SO-DIMM DDR4 3200 MHz (max 32 GB)
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet: 2 x 2.5 Giga LAN RJ45 (Intel® controllers)
• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: LED for power and storage
• Brightness control: brightness adjustment knob
• Power input: 1 x 12V DC, 2.5φ DC jack; adapter 12V 120W
• Dimensions: 366.3 x 248 x 67.5 mm
• Weight: 3.6 kg
• Enclosure: metal housing
• Cooling: fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws
