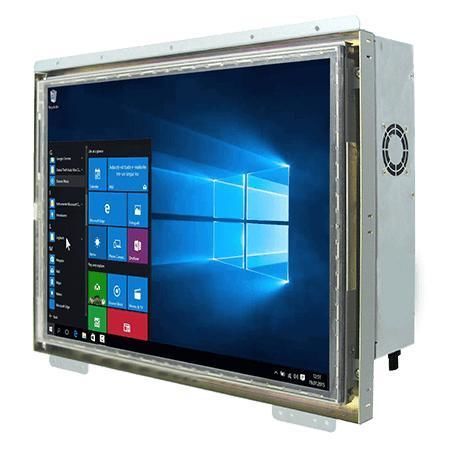

Resistive touch screen panel PC R15IF7T-OFC3

LCD15"Intel® Core i3

Overview
Winmate R15IF7T-OFC3 is a 15-inch open-frame Panel PC powered by Intel® 9th Gen Core™ processors (Coffee Lake Refresh). Designed for machine control, factory automation and operator HMI applications, it provides flexible storage, multiple I/O, optional wireless modules, TPM 2.0 and desktop-class chipset support for stable integration and long lifecycle availability.

Key Features

• 15" 1024 x 768 LCD, 300 nits
• Intel® 9th Gen Core™ i3 / i5 / i7 options
• Flexible storage: M.2 NVMe/SATA and 2.5" SATA (HDD/SSD), RAID 0/1 support
• Multiple I/O: 2 x serial, 4 x USB 3.2 Gen1 (Type‑A), 2 x Gigabit LAN
• 12 V DC input (lockable Din4 connector)
• DisplayPort up to 4096 x 2304 @60 Hz; HDMI up to 4096 x 2304 @24 Hz (optional)

Highlights / Functional Features

• Touch options: resistive touch screen (optional) or protection glass (no touch)
• Low power design with effective heat dissipation and fan-assisted cooling
• Mounting: Open frame default; optional panel-mount and VESA mounting
• Metal housing for industrial deployment; TPM 2.0 security

Certifications
CE, FCC

Specifications

• Display — Size: 15.0 inches; Resolution: 1024 x 768; Brightness: 300 nits; Contrast: 2000:1; Active Area: 304.1 x 228.1 mm
• Processor — Intel® Core™ i7-9700TE (default), i5-9500TE (option), i3-9100TE (option); Chipset: Intel® Q370
• Memory — 2 x non‑ECC SO‑DIMM, up to 64 GB (32 GB per DIMM)
• Storage — 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB; 1 x M.2 2280/2242 M‑Key (NVMe/SATA); 2 x SATA III for 2.5" SSD/HDD (RAID 0/1 optional)
• Expansion — 1 x M.2 2230 E‑Key (Wi‑Fi); 1 x PCIe 3.0 x16 (optional)
• Ethernet — 2 x Intel® Gigabit Ethernet (RJ45)
• Security & OS — TPM 2.0; Windows 10 IoT Enterprise (64-bit) or Linux options
• I/O Ports — USB: 4 x USB 3.2 Gen1 Type‑A; Serial: 1 x RS232/422/485 (configurable) + 1 x RS232; Video: 1 x DP 1.2 (default), 1 x HDMI 1.4 (optional); Audio: Mic‑in, Line‑out, 2 x Speaker; Indicators: power & storage LEDs; Brightness knob; Power & Reset buttons
• Mechanical — Dimensions: 358 x 292 x 63 mm; Weight: ~4.1 kg; Enclosure: Metal housing; Cooling: fan design
• Power — 1 x 12 V DC (lockable Din4); adapter reference 12 V 120 W; accessories: 100–240 V AC to DC adapter, power cord, VESA screws
• Environment — Operating: 0°C to 50°C; Storage: -10°C to 60°C; Humidity: 10%–90% RH non‑condensing
• Certifications — CE, FCC
