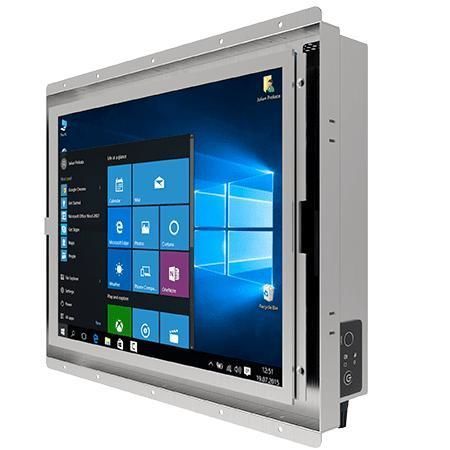

Resistive touch screen panel PC R12IAD3S-OFM2

touch screen12.1"Intel® Core i5-1235U

Product summary
Winmate R12IAD3S-OFM2 is a 12.1-inch open frame industrial panel PC powered by a 12th Gen Intel® Core™ i5-1235U processor. It is built for machine control, factory automation and operator HMI where reliable performance, long lifecycle availability and compact integration are required.

Overview
High-performance open frame panel PC featuring Intel Alder Lake architecture for smooth multitasking and efficient operation. Offers configurable touch or protection glass options, multiple mounting methods and a fanless metal enclosure to meet industrial deployment requirements.

Key Features

• 12.1" 1024 x 768 open frame display
• 12th Gen Intel® Core™ i5-1235U (3.3 GHz base, up to 4.40 GHz)
• 1 x SODIMM DDR5-4800, supports up to 32 GB
• Integrated dual 2.5 Gigabit Ethernet controllers
• Multiple I/O: 2 x USB 3.2 Gen2x1 (Type-A), serial ports, RJ45 LAN, optional HDMI 2.0
• 12 V DC power input (1 x 12V DC, 2.5φ DC jack)
• Resistive touch (optional) or protection glass (optional)

Highlights / Product Strengths

• Designed for machine control and operator HMI in industrial environments
• Low power consumption and fanless metal housing for quiet, reliable operation
• Versatile mounting: open frame (default), panel mount (optional) or VESA mount (optional)
• Expandable storage and wireless options via M.2 slots

Certifications

• CE
• FCC

Technical specifications

• Display Size: 12.1 inches
• Resolution: 1024 x 768
• Brightness: 500 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 89/89/89/89
• Active Area: 245.76 x 184.32 mm
• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8 GB (default); optional 16 GB or 32 GB; 1 x SODIMM DDR5 4800 MHz, up to 32 GB
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional); 1 x M.2 2280 M-Key (NVMe)
• Ethernet: 2 x Intel® 2.5 Giga LAN RJ45
• Security: TPM 2.0
• Operating System: Windows 11 IoT Enterprise (64-bit) (optional); Windows 11 Pro 64-bit (optional); Linux Ubuntu 22.04 (optional; Wake on Touch not supported)
• WLAN / Bluetooth: optional (M.2 2230 E-Key)
• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x Speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators / Controls: Power LED; Storage LED; Brightness adjustment knob; Power and Reset buttons
• Power Input / Adapter: 1 x 12V DC, 2.5φ DC jack; adapter 12V 120W (accessory)
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws
• Dimensions: 300 x 250 x 62 mm
• Weight: 2.3 kg
• Mounting Options: Open frame (default); Panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing
• Cooling: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
