Resistive touch screen panel PC W07IE3S-OFT1

7"Intel® Celeron® N62111024 x 600

Product Overview

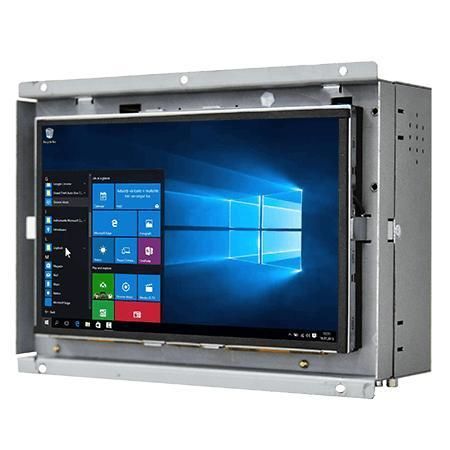

The Winmate W07IE3S-OFT1 is a 7-inch open-frame industrial panel PC powered by an Intel® Celeron® N6211 (Elkhart Lake). It is intended for machine control, factory automation and operator HMI applications that require low power consumption, flexible mounting and industrial-grade I/O and expansion options. The unit provides configurable memory and storage, a fanless metal enclosure and multiple interfaces for system integration.

Key Features

• 7-inch TFT SVGA display (1024 x 600)
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4
• 2 x Intel® Ethernet controllers (2 x 2.5 Gbps RJ45)
• Support for 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1 (Type-A), 4 x USB 2.0

Highlights

• Optional resistive touch or protective glass (non-touch)
• Fanless metal housing for passive thermal management
• Multiple mounting options: open frame (default), panel mount (optional), VESA mount (optional)

Certifications

• CE
• FCC

Display and Touch Options
The device is available with a resistive touch panel when touch input is required, or with protection glass without touch for non-interactive installations. The 7.0" panel offers 320 nits brightness and a 1024 x 600 resolution suitable for HMI screens and machine displays.

Power and Thermal
Designed for low power consumption, the system uses passive cooling in a fanless metal enclosure to provide stable operation in typical industrial temperature ranges. Power input is 12V DC (2.5φ DC jack) with a 12V 50W adapter available.

Mounting and Integration
Provides flexible integration options including open-frame installation, optional panel mount and VESA mount compatibility. Expansion slots (M.2) and multiple I/O connectors support OEM integration and system upgrades.

System, Storage and Expansion

• Default memory: 4 GB (options: 8 GB, 16 GB)
• Default storage: 128 GB SSD (options up to 2 TB); 1 x SATA III for 2.5" SSD/HDD (optional)
• Expansion: 1 x M.2 2242 B-Key (SATA SSD), 1 x M.2 2230 E-Key (Wi‑Fi module)
• Security: TPM 2.0
• Optional OS: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 22.04

Technical specifications

• Model: W07IE3S-OFT1
• Display size: 7.0 inches; Resolution: 1024 x 600; Brightness: 320 nits; Contrast: 1000:1; Viewing angles: 75/75/75/70; Active area: 153.6 x 90 mm
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 1 x SO-DIMM, up to 16 GB DDR4 (default 4 GB)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Gbps RJ45)
• USB: 2 x USB 3.2 Gen2x1 (Type-A), 4 x USB 2.0
• Serial: 1 x RS232/422/485 (configurable), 1 x RS232
• Video: HDMI 2.0 (optional)
• Audio: 2 x speaker
• Indicators: power LED, storage LED
• Dimensions: 190 x 139.6 x 60.3 mm; Weight: 1.2 kg
• Mounting: Open frame (default), Panel mount (optional), VESA mount (optional)
• Enclosure: Metal housing; Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• Power input: 1 x 12V DC (2.5φ DC jack); Adapter: 12V 50W
• Buttons: 1 x power, 1 x reset
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws
