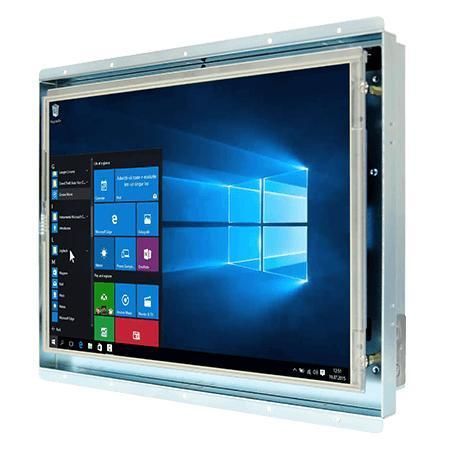

Resistive touch screen panel PC R12IE3S-OFM2

TFT LCD12.1"Intel® Celeron® J6413

Overview
Winmate R12IE3S-OFM2 is a 12.1-inch Intel® Celeron® N6211 open-frame panel PC designed for machine control, factory automation and operator HMI. It targets OEMs, system integrators and industrial buyers who need compact, low-power hardware with multiple I/O and long lifecycle availability.

Key features

• 12.1" TFT LCD, 1024 × 768, 500 nits
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4
• 2 x Intel® Ethernet controllers (2.5 Gbps)
• Multiple storage options: M.2 2242, SATA III, NVMe/SSD choices
• I/O: 2 x USB 3.2 Gen2, 4 x USB 2.0, 4 x COM

Highlights / Functional description

• Touch options: resistive touch or protective glass (no-touch) to suit operator environments
• Fanless metal housing for passive cooling and reliable continuous operation
• Mounting flexibility: open-frame default, optional panel mount and VESA mount for OEM integration
• Security and manageability: TPM 2.0 and optional OS images (Windows IoT, Windows Pro, Ubuntu)

Certifications

• CE
• FCC

Accessories (included / available)

• 100–240V AC to DC adapter (12V 50W)
• Power cord
• VESA screws

Product summary (short)
12.1" open-frame industrial panel PC R12IE3S-OFM2 with Intel® Celeron® N6211, up to 16 GB DDR4, multiple storage options, dual Intel® Ethernet, TPM 2.0 and flexible I/O for HMI and machine control applications.

Specifications

• Display — Size: 12.1 inches; Resolution: 1024 × 768; Brightness: 500 nits; Contrast: 1000:1; View angles: 89/89/89/89
• Touch / Glass — Resistive touch (optional); Protection glass without touch (optional)
• Processor — Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory — 4 GB default; optional 8 GB / 16 GB; 1 x SO-DIMM, max 16 GB DDR4
• Storage — 128 GB SSD default; options up to 2 TB; 1 x SATA III for 2.5" drive (optional); 1 x M.2 2242 B-Key (SATA)
• Ethernet — 2 x Intel® Ethernet controllers (2.5 Gbps RJ45)
• Serial — 1 x RS232/422/485 (default RS232) + 1 x RS232
• USB — 2 x USB 3.2 Gen2; 4 x USB 2.0
• Video — 1 x HDMI 2.0 (optional)
• Audio — 2 x speaker
• Expansion — 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators / Controls — Power LED, Storage LED, Brightness adjustment knob, Power and Reset buttons
• Security — TPM 2.0
• OS (optional) — Windows 11 IoT Enterprise (64-bit), Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04
• Mechanical — Dimensions: 300 × 250 × 52 mm; Weight: 2.3 kg; Enclosure: metal; Cooling: fanless
• Power — Input: 1 x 12V DC (2.5φ jack); Adapter: 12V 50W
• Environment — Operating temperature: 0°C to 50°C; Storage: -10°C to 60°C; Operating humidity: 10%–90% RH non-condensing
• Certifications — CE, FCC
