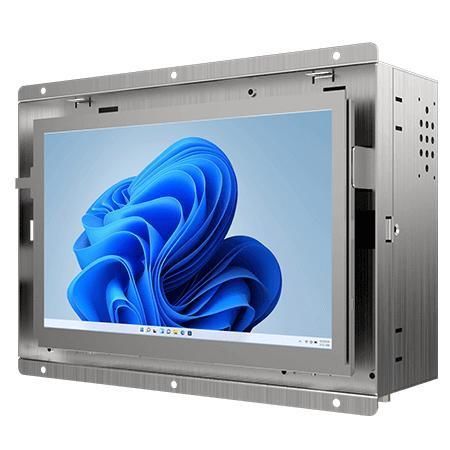

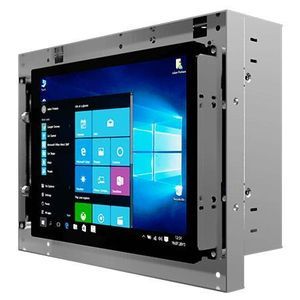

Panel PC with touch screen W07IAN3S-OFT1

resistive touch screenTFT LCD7"

Overview
Winmate W07IAN3S-OFT1 is a 7-inch Intel® Alder Lake-N N150 open frame panel PC engineered for machine control, factory automation, and operator HMI. It provides dependable computing and visual performance for industrial environments, emphasizing stable hardware integration, long lifecycle availability, and flexible I/O for embedded and mission-critical applications.

Key features

• 7-inch SVGA TFT LCD (1024 x 600), 320 nits
• Intel® Alder Lake-N platform: N100 (default) or N150 (option)
• 1 x SO-DIMM DDR5-4800, up to 16 GB
• 2 x Intel® 2.5 Gigabit Ethernet
• Video & USB: 1 x HDMI 2.0b (optional), 1 x USB 3.2 Gen2 Type-C (DP Alt), 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
• Multiple serial ports: RS232/422/485 (configurable)
• Open frame default, optional panel or VESA mount
• Metal housing, fanless design, TPM 2.0

Product highlights

• Reliable performance and scalable configuration: Alder Lake-N processors with integrated UHD graphics support smooth HMI, visualization and real-time monitoring tasks.
• Compact industrial display: 7" SVGA panel optimized for readability in tight installations and operator stations.
• Comprehensive I/O for system integration: HDMI, USB-C with DP Alt, multiple USB and COM ports plus dual 2.5GbE for high-throughput network connectivity.
• Flexible storage and expansion: NVMe/SSD options, optional SATA III for 2.5" drives and M.2 slot for Wi‑Fi modules.
• Designed for industrial deployment: metal enclosure, fanless cooling, extended operating conditions and long-term availability.

Technical specifications

• Model: W07IAN3S-OFT1
• Display Size: 7.0 inches; Resolution: 1024 x 600 (SVGA); Brightness: 320 nits; Contrast Ratio: 1000:1; View Angles: 75/75/75/70; Active Area: 153.6 x 90 mm
• Touch / Glass: Resistive touch (optional); Protection glass (optional)
• Processor: Intel® Processor N100 6M Cache, up to 3.40 GHz (default); Intel® Processor N150 6M Cache, up to 3.60 GHz (optional)
• Memory: 4 GB (default); options: 8 GB, 16 GB (1 x SO-DIMM DDR5-4800, max 16 GB)
• Storage: 128 GB SSD (default); options: 256 GB, 512 GB, 1 TB, 2 TB, 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (only if NVMe not present)
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• USB: 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (DP Alt); 4 x USB 2.0
• Video: 1 x HDMI 2.0b (optional)
• Audio: 2 x Speaker
• Expansion: 1 x M.2 2230 E-Key slot (for Wi‑Fi module)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 24.04 (no Wake on Touch)
• WLAN / Bluetooth: optional via M.2 module
• Mechanical Dimension: 190 x 139.6 x 60.3 mm; Weight: 1.2 kg
• Mounting: Open frame (default); Panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing; Cooling: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C; Storage Temperature: -10°C to 60°C
• Indicators: 1 x LED for power; 1 x LED for storage
• Power Input: 1 x 12 V DC (2.5φ DC jack); Adapter: 12 V 50 W
• Buttons: 1 x Power, 1 x Reset
• Accessories: 100~240 V AC to DC adapter; power cord; VESA screws
• Certifications: CE, FCC
