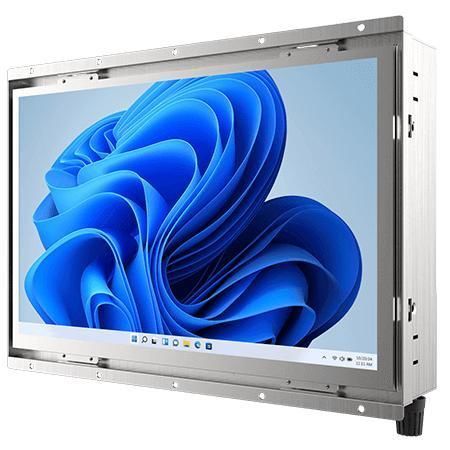

Resistive touch screen panel PC W10IAN3S-OFH2

TFT LCD10.1"Intel® Alder Lake-N

Overview
The W10IAN3S-OFH2 is a 10.1-inch open-frame Panel PC designed for machine control, factory automation and HMI applications. It is powered by Intel® Alder Lake‑N processors (N100 default, N150 optional) and features a WXGA TFT display, flexible I/O and multiple mounting options for OEM and industrial integration.

Key features

• 10.1" WXGA TFT (1280 x 800), 350 nits
• Intel® Alder Lake‑N (N100 default, N150 optional)
• 1 x SO-DIMM DDR5-4800, up to 16 GB
• 2 x 2.5 Gigabit Ethernet (RJ45)
• Multiple USB ports including 1 x USB 3.2 Gen2 Type-C with DP Alt Mode; optional HDMI
• Open-frame design with optional panel or VESA mounting; fanless metal enclosure

Product description
The W10IAN3S-OFH2 provides stable computing and integrated UHD graphics suitable for real-time processing and visualisation in compact industrial environments. Its 10.1" WXGA screen delivers clear readability while the open-frame format simplifies installation into machine panels or enclosures.

Integration and I/O
The unit offers extensive I/O for system integration: configurable serial ports (RS232/422/485), multiple USB Type-A and Type-C ports (DP Alt Mode), dual 2.5G LAN ports for high‑speed networked communication, and indicators and controls for on-site diagnostics and brightness adjustment.

Technical specifications

• Model: W10IAN3S-OFH2
• Display: 10.1 inches, 1280 x 800, 350 nits, 800:1 contrast, active area 216.96 x 135.6 mm
• Touch/Glass: Resistive touch optional or protection glass without touch
• CPU: Intel® Processor N100 (6M Cache, up to 3.40 GHz) default; Intel® Processor N150 (6M Cache, up to 3.60 GHz) optional
• Memory: 4 GB default; options 8 GB / 16 GB; 1 x SO-DIMM DDR5-4800, max 16 GB
• Storage: 128 GB SSD default; options up to 4 TB; 1 x SATA III for 2.5" SSD/HDD available if no NVMe
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet controllers (RJ45)
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 24.04 (no Wake on Touch)
• Wireless: Optional via M.2 2230 E-Key
• Dimensions & weight: 239 x 174 x 45 mm; approx. 1.3 kg
• Mounting: Open frame default; panel mount and VESA mount optional
• Environment: Operating humidity 10%–90% RH non-condensing; operating temperature 0°C–50°C; storage -10°C–60°C
• Power: 1 x 12V DC (2.5φ DC jack); adapter 12V 50W
• Ports: 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (DP Alt Mode); 4 x USB 2.0; 1 x RS232/422/485 + 1 x RS232; 2 x 2.5G LAN; 1 x HDMI 2.0b optional; 2 x speakers
• Expansion: 1 x M.2 2230 E-Key slot

Certifications

• CE
• FCC

Applications & accessories

• Use cases: industrial automation, machine control, embedded HMI and OEM systems
• Included/suggested accessories: 100~240V AC to DC adapter, power cord, VESA screws
