Resistive touch screen panel PC R15IAD7T-OFC3
15"Intel® Core i3Intel® Core i5

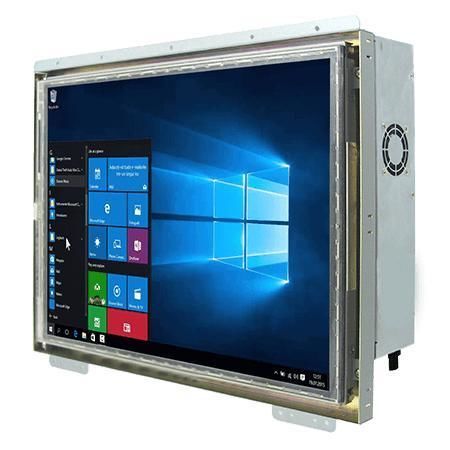

Resistive touch screen panel PC - R15IAD7T-OFC3 - Winmate, Inc. - 15" / Intel® Core i3 / Intel® Core i5
Resistive touch screen panel PC - R15IAD7T-OFC3 - Winmate, Inc. - 15" / Intel® Core i3 / Intel® Core i5
Resistive touch screen panel PC - R15IAD7T-OFC3 - Winmate, Inc. - 15" / Intel® Core i3 / Intel® Core i5 - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
resistive touch screen
Display size
15"
Processor
Intel® Core i5, Intel® Core i7, Intel® Core i3, Intel® Alder Lake-S, Intel® Core™ i9
Resolution
1024 x 768
Memory
DDR5 SDRAM
Operating system
Linux® Ubuntu™, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
open frame
Mounting
VESA mounting
Applications
industrial
Other characteristics
high-performance, Ethernet, RJ45, WiFi, Bluetooth
Memory size

Min.: 0 GB

Max.: 64 GB

Description

Overview
  • The Winmate R15IAD7T-OFC3 is a 15-inch Open Frame Panel PC designed for machine control, factory automation and operator HMI.
  • Equipped with 12th/14th Gen Intel® Core™ (Alder Lake S/T variants) processors to provide high computing performance in industrial and mission-critical environments.
  • Target users include industrial buyers, OEMs and system integrators requiring reliable hardware integration, stable field operation and long lifecycle availability.


Key Features
  • 15-inch 1024 x 768 open frame display
  • Intel® Core™ Alder Lake S/T processors (i3, i5, i7, i9 options)
  • 2 x SO-DIMM DDR5 4800MHz, up to 64GB
  • Integrated dual 2.5 Gigabit Ethernet
  • Multi-display: DP 1.4a (DP++) default, HDMI 2.0b optional
  • Multiple I O: 4 x USB 3.2 Gen2 Type A, serial ports, audio, expansion slots
  • 12 V DC power input


Product Highlights
  • High performance for multitasking and industrial applications.
  • Resistive touch option or protection glass option without touch.
  • Low power consumption and efficient thermal design for continuous operation.
  • Versatile mounting: open frame standard; panel mount and VESA optional.


Certifications
  • CE
  • FCC


Technical specifications
  • Display: 15.0 inches; Resolution 1024 x 768; Brightness 300 nits; Contrast 2000:1; View angles 88/88/88/88; Active area 304.1 x 228.1 mm; Touch/Glass: Resistive touch optional or protection glass optional.
  • Processor & Chipset: Default Intel® Core™ i3-12100TE (up to 4.00GHz); optional i5-12500TE, i7-12700TE, i9-12900TE and select 14th gen T-series variants; Chipset Intel® R680E.
  • Memory: 2 x non-ECC SO-DIMM DDR5 4800MHz, up to 64GB (32GB per slot).
  • Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; optional 2 x SATA III for 2.5" SSD/HDD up to 2TB (RAID support); 1 x M.2 2280 M-Key for NVMe SSD.
  • Ethernet & Network: 2 x Intel® Ethernet Controllers (2 x 2.5 Giga LAN RJ45); optional WLAN/BT via M.2 2230 E-Key.
  • Video & Graphics: 1 x DP 1.4a DP++ default supporting up to 4096x2160@60Hz; 1 x HDMI 2.0b optional supporting up to 4096x2160@60Hz.
  • I O Ports: 4 x USB 3.2 Gen2 Type A (10Gbps); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; Audio: Mic-in, Line-out; Expansion: M.2 slots.
  • Security: TPM 2.0.
  • Operating System: Optional Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (note: Linux option does not support Wake on Touch).
  • Power: Power input 1 x 12V DC (Din4 pin connector); adapter 12V 220W listed.
  • Mechanical: Dimensions 358 x 292 x 72 mm; Weight 4.1 kg; Metal housing; Fan cooling; Mounting open frame default, panel mount and VESA optional.
  • Environment: Operating temperature 0°C to 50°C; Storage -10°C to 60°C; Operating humidity 10% to 90% RH non-condensing.
  • Controls & Accessories: 1 x Power button; 1 x Reset button; Accessories: 100 240V AC to DC adapter, power cord, VESA screws.
