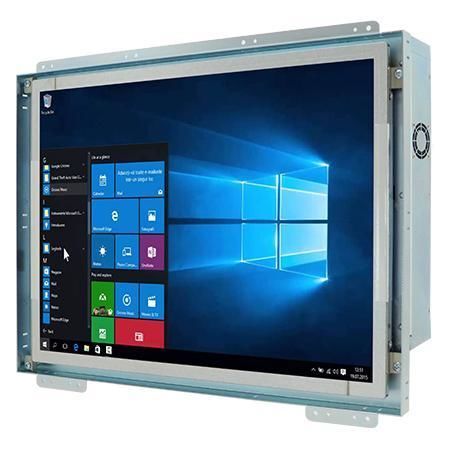

Resistive touch screen panel PC R15IP7T-OFC3

LCD15"Intel® Pentium® N4200

Summary
Winmate R15IP7T-OFC3 is a 15-inch Open Frame Panel PC powered by an Intel® Pentium® N4200 (Apollo Lake), engineered for machine control, factory automation and operator HMI applications where long lifecycle availability and low power consumption are required.

Key Features

• Intel® Pentium® N4200 (1.10 GHz, burst up to 2.5 GHz)
• Flexible storage: 1 x 2.5" SATA bay, M.2 2242 B-key slot, default 128 GB SSD (options up to 1 TB)
• Multiple I/O: 4 x USB 3.2 Gen1 (Type-A), 2 x serial (configurable RS232/422/485), 2 x Gigabit LAN
• Display outputs: DP1.2 (up to 4096 x 2160 @ 60 Hz), HDMI 1.4 optional (3840 x 2160 @ 30 Hz)
• 12 V DC input (Din4 pin); fanless metal enclosure

Display & Touch Options

• 15.0" LCD, 1024 x 768, 300 nits, contrast 2000:1, viewing angles 88/88/88/88
• Resistive touch option or protection glass (non-touch) for harsh environments
• Active area 304.1 x 228.1 mm; brightness adjustment knob

Mechanical & Mounting

• Dimensions: 358 x 292 x 63 mm; Weight: ~4.1 kg
• Mounting: open frame (default), panel-mount (optional), VESA mount (optional)
• Metal housing designed for industrial integration and rack/panel installations

Certifications

• CE
• FCC

System & Specifications

• Memory: Dual-channel SO-DIMM (non-ECC) up to 16 GB
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu options
• Wireless: optional M.2 2230 E-key for Wi‑Fi/Bluetooth

I/O & Expansion

• USB: 4 x USB3.2 Gen1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP1.2 (standard), HDMI 1.4 and VGA optional
• Audio: Mic-in, Line-out, 2 x speakers; Expansion: M.2 2242 B-key, M.2 2230 E-key, PCIe 2.0 x1

Environment & Reliability

• Operating temperature: 0 °C to 50 °C
• Storage temperature: -10 °C to 60 °C
• Operating humidity: 10%–90% RH (non-condensing)

Accessories & Power

• Included/optional accessories: 100~240V AC to 12V DC adapter, power cord, VESA screws, driver CD/manual
• Power input: 1 x 12 V DC Din4 pin connector; adapter 12 V 50 W

Usage & Integration

• Designed for OEMs, system integrators and industrial HMI installations
• Flexible storage and interface options simplify system integration and field upgrades
