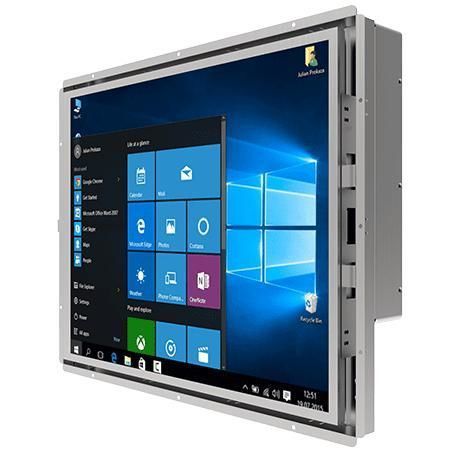

Resistive touch screen panel PC R19IT3S-OFA1

TFT LCD19"Intel® Core™ i5-1135G7

Overview
Winmate R19IT3S-OFA1 is a 19" open frame panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz). Built for machine control, factory automation and operator HMI integration, it provides fanless cooling, low power consumption and multiple mounting options for OEM and system-integrator projects.

Key Features

• 19" TFT XGA display (1280 x 1024), 400 nits, 1000:1 contrast
• Intel® Core™ i5-1135G7 processor (2.4 GHz, up to 4.2 GHz)
• Fanless cooling and ultra-low power design
• 1 x SO-DIMM DDR4 3200 MHz (max. 32 GB)
• Dual Intel® Ethernet controllers (2 x 2.5 Giga LAN)
• M.2 slots: Key M for M.2 2242 SATA III (optional M.2 2280 NVMe)

Product Highlights / Overview Details

• Touch / surface options: resistive touch (optional) or protective glass without touch (optional)
• Display: 400 nits brightness; viewing angles 85/85/80/80; active area 376.32 x 301.06 mm
• Storage: 128GB SSD default; optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Memory: 4GB default; configurable to 8GB / 16GB / 32GB (1 x SO-DIMM)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit (optional), Windows 11 Pro 64-bit (optional), Ubuntu 22.04 (optional; Wake on Touch not supported)
• WLAN / Bluetooth: optional via M.2 2230 E-Key
• Mounting: open frame (default), panel mount (optional), VESA mount (optional)
• Enclosure: metal housing; Dimensions: 445 x 355 x 70 mm; Weight: 4.8 kg

Mechanical & Mounting

• Open frame design for kiosk or OEM enclosure integration
• Panel-mount and VESA-mount options available
• Metal housing suitable for industrial installations

IO & Expansion

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45 connectors
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speakers
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: power and storage LEDs; 1 x brightness knob

Environment & Power

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• Power input: 1 x 12V DC, 2.5φ DC jack; Adapter: 12V 120W
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws

Certifications

• CE
• FCC

Additional Product Notes

• Fanless design for silent operation and improved reliability in industrial environments
• Flexible mounting and surface options to match operator workflows and enclosures
• Targeted for machine control, factory automation and operator HMI applications

Technical specifications

• Model: R19IT3S-OFA1
• Brand: Winmate
• Display: 19.0" TFT XGA (1280 x 1024), 400 nits, 1000:1 contrast
• Touch / Glass: Resistive touch (optional) or protection glass (optional)
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4GB default; options 8GB / 16GB / 32GB (1 x SO-DIMM, DDR4 3200 MHz)
• Storage: 128GB SSD default; optional up to 4TB; 1 x SATA III for 2.5" drive (up to 2TB)
• Ethernet: 2 x Intel® 2.5 Giga LAN
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
• Dimensions / Weight: 445 x 355 x 70 mm / 4.8 kg
• Mounting: Open frame (default); panel mount and VESA optional
• Power: 12V DC input (2.5φ); Adapter 12V 120W
• IO: 2 x USB3.2 Gen2x1; serial ports as specified; 2 x 2.5 Giga LAN RJ45; HDMI 2.0 (optional); 2 x speakers
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi)
• Operating temp/humidity: 0°C to 50°C; 10% to 90% RH non-condensing
• Storage temp: -10°C to 60°C
• Cooling: Fanless
• Certifications: CE, FCC
