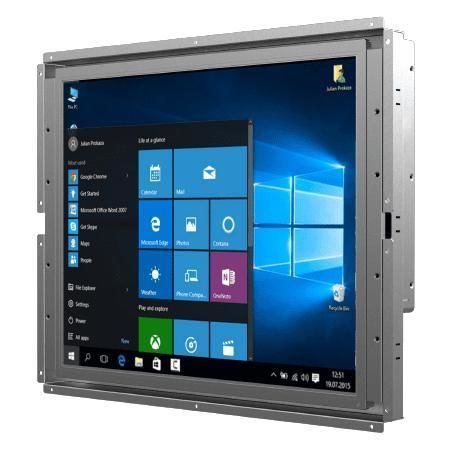

Resistive touch screen panel PC R17IT7T-OFM1

17"Intel® Core™ i5-1135G7Intel® Core™ i5-1145G7

Overview
Winmate R17IT7T-OFM1 is a 17-inch Intel® Core™ i5 (Tiger Lake) Open Frame Panel PC designed for machine control, factory automation and operator HMI. The platform provides industrial-grade reliability, long lifecycle availability and flexible integration options for OEMs and system integrators.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) / i5-1145G7E (with vPro)
• 17.0" display, 1280 x 1024 resolution, 350 nits
• Multi-display support: DisplayPort / HDMI / LVDS / eDP
• Multiple I/Os including 2 serial ports and 4 x USB 3.2 Gen2x1 Type-A
• 12V single-voltage DC power input; fanless metal housing

Highlights / Product advantages

• Optional resistive touch screen or protection glass when touch is not required
• Low power consumption and effective heat dissipation for continuous operation
• Multiple mounting options: Open frame (default), panel mount (optional), VESA mount (optional)
• Fanless design and metal enclosure suitable for industrial environments

Certifications

• CE
• FCC

Technical specifications

• Model: R17IT7T-OFM1
• Display size: 17.0 inches
• Touch / Glass: Resistive Touch Screen (optional); Protection Glass without touch function (optional)
• Resolution: 1280 x 1024
• Brightness: 350.0 nits; Contrast ratio: 1000:1; View angles: 85/85/80/80°
• Active area: 337.920 x 270.336 mm
• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD (default); optional 256 GB/512 GB/1 TB/2 TB/4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 1 x Gigabit LAN (RJ45); 1 x 2.5 Gigabit LAN (RJ45) — 2 x Intel® Ethernet controllers
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro (64-bit); Linux Ubuntu 22.04 (does not support Wake on Touch)
• WLAN / Bluetooth: optional
• USB ports: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial ports: 1 x RS232/422/485 (default RS232); 1 x RS232
• Video: 1 x DisplayPort 1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 x16 slot (x4 signal)
• Indicators: LED power; LED storage
• Controls: Power button; Reset button; Brightness adjustment knob
• Mechanical dimensions: 410 x 329 x 74 mm; Weight: 4.5 kg
• Mounting: Open frame (default); Panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing; Cooling: Fanless design
• Power input: 1 x 12V DC, Din4 pin connector; Power rating: 12V DC; Adapter: 12V 120W (accessory)
• Accessories: 100~240V AC to DC adapter; power cord; VESA screws
• Environment - Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C; Operating humidity: 10% to 90% RH, non-condensing
• Certifications: CE, FCC
