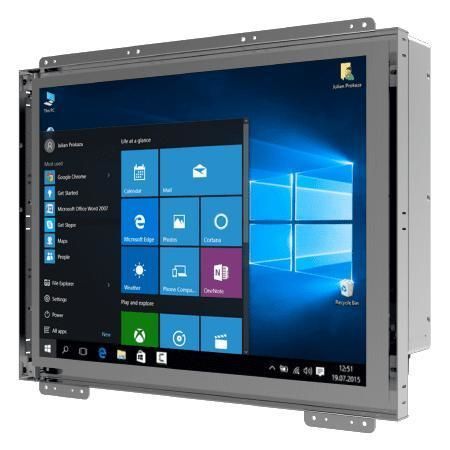

Resistive touch screen panel PC R15IT7T-OFC3

15"Intel® Core i5Intel® Tiger Lake-U

Product overview
The Winmate R15IT7T-OFC3 is a 15-inch open-frame panel PC powered by Intel® Core™ i5 (Tiger Lake). It is designed for machine control, factory automation and operator HMI with fanless cooling, metal enclosure and multiple mounting options for OEM and industrial applications.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 15.0-inch display, 1024 x 768 resolution, 300 nits brightness
• Multi-display support via DP / HDMI / LVDS / eDP
• Multiple I/O: 4 x USB 3.2 Type-A, serial ports, dual LAN (1 G + 2.5 G)
• 12V DC single-voltage input and fanless metal housing

Highlights / product details

• Display options: resistive touch (optional) or protection glass (optional)
• Open-frame default with optional panel mount or VESA mounting
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi), PCIe 4.0 x16 (x4 signal)
• Indicators and controls: power/storage LEDs, brightness knob, power and reset buttons

Certifications

• CE
• FCC

IO & expansion

• USB: 4 x USB 3.2 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 1 x Gigabit RJ45 + 1 x 2.5 G RJ45
• Video: 1 x DP1.4 (default), 1 x HDMI 2.0 (optional)
• Audio: Mic-in, Line-out
• Storage: 128 GB SSD default; optional 256/512 GB, 1/2/4 TB; 1 x SATA III for 2.5" drives

Environment & reliability

• Operating temperature: 0 °C to 50 °C
• Storage temperature: -10 °C to 60 °C
• Operating humidity: 10% to 90% RH (non-condensing)
• Fanless thermal design for continuous industrial operation

Accessories

• 100 ~ 240V AC to DC adapter (12V 120W)
• Power cord
• VESA screws

Technical specifications

• Model: R15IT7T-OFC3
• Brand: Winmate
• Display size: 15.0 inches; resolution: 1024 x 768; brightness: 300 nits; contrast 2000:1; active area 304.1 x 228.1 mm
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz up to 4.2 GHz) / optional i5-1145G7E
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB
• Storage options: 128 GB SSD default; up to 4 TB; SATA III for 2.5" HDD/SSD
• Ethernet controllers: dual Intel® controllers
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
• Dimensions: 357.6 x 291.6 x 63 mm; Weight: 4.1 kg
• Mounting: Open frame (default); panel mount / VESA (optional)
