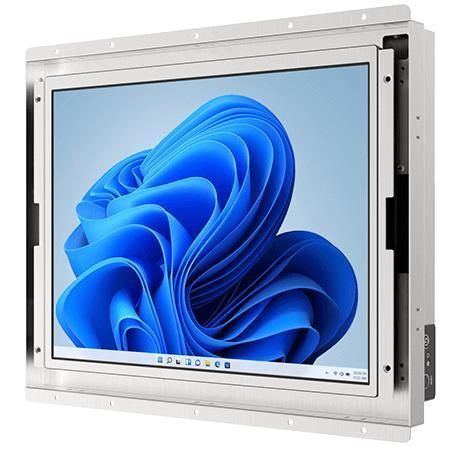

Resistive touch screen panel PC R12IAN3S-OFM2

TFT LCD12.1"Intel® Processor N100

Overview
The Winmate R12IAN3S-OFM2 is a 12.1-inch open-frame Panel PC engineered for machine control, factory automation and operator HMI. It pairs Intel® Alder Lake-N processors with integrated UHD graphics, a fanless metal enclosure and flexible mounting for industrial applications.

Key Features

• 12.1-inch XGA TFT LCD (1024 x 768), 500 nits
• Intel® Alder Lake‑N family (N100 default, N150 optional)
• 1 x SO-DIMM DDR5-4800, up to 16 GB
• 2 x Intel® 2.5 Gigabit Ethernet
• Video & USB: HDMI (optional), USB 3.2 Type-C with DP-Alt, USB 3.2/USB 2.0
• 4 x COM serial ports; panel, open-frame or VESA mounting

Certifications
CE, FCC

Product highlights

• Reliable processing for automation: N100/N150 processors with integrated UHD Graphics for real-time monitoring and control.
• Clear industrial display: XGA TFT for readable visuals in compact installations.
• Versatile I/O: comprehensive interfaces for seamless integration with PLCs, sensors and peripherals.
• High-speed networking: dual 2.5GbE for stable communication in industrial networks.

Display

• Size: 12.1-inch
• Touch / Glass: Resistive touch (optional); protection glass without touch (optional)
• Resolution: 1024 x 768
• Brightness: 500 nits; Contrast: 1000:1; View angles: 89/89/89/89
• Active area: 245.76 x 184.32 mm

System specification

• Processor: Intel® N100 (default) or Intel® N150 (optional)
• Memory: 4 GB default; configurable to 8 GB / 16 GB (1 x SO-DIMM DDR5-4800)
• Storage: 128 GB NVMe SSD default; options up to 4 TB; 1 x SATA III for 2.5" SSD/HDD (if NVMe absent)
• Security: TPM 2.0; OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 24.04 (optional)
• WLAN/BT: optional via M.2 2230 E-Key

Mechanical

• Dimensions: 300 x 250 x 52 mm
• Weight: ~2.3 kg
• Enclosure: metal housing; fanless design
• Mounting: open-frame (default); panel mount or VESA optional

Environment

• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing

I/O ports

• USB: USB 3.2 Gen1 Type-A, USB 3.2 Gen2 Type-C (DP Alt mode), additional USB 2.0 ports depending on configuration
• Serial: RS232/422/485 options
• LAN: 2 x 2.5 GbE RJ45
• Video: HDMI 2.0b (optional)
• Audio: 2 x speaker; Expansion: M.2 2230 E-Key (Wi-Fi)
• Indicators: power and storage LEDs; brightness adjustment knob; power input 12V DC (2.5φ jack)

Control

• 1 x Power button; 1 x Reset button

Accessories

• 12V 50W adapter (100~240V AC to DC), power cord, VESA screws (depending on configuration)

Power

• Power rating: 12V DC; Adapter: 12V 50W

Technical specifications

• Model: R12IAN3S-OFM2
• Display: 12.1-inch XGA 1024x768, 500 nits
• CPU options: Intel® N100 / N150
• Memory: up to 16 GB DDR5 SO-DIMM
• Storage: NVMe/SSD up to 4 TB; optional 2.5" SATA
• Ethernet: Dual Intel® 2.5GbE
• Operating: 0°C–50°C; Humidity: 10%–90% RH
• Certifications: CE, FCC
