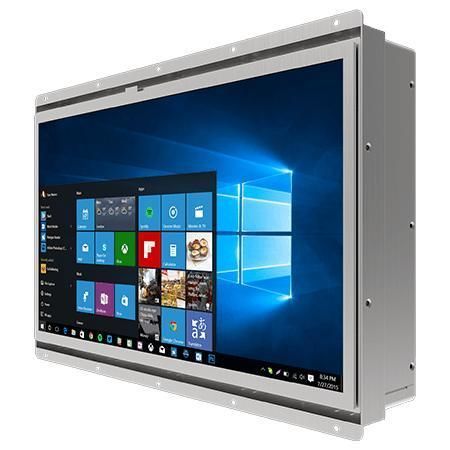

Resistive touch screen panel PC W15IAD3S-OFA2

TFT LCD15.6"Intel® Core i5-1235U

Overview
Winmate W15IAD3S-OFA2 is a 15.6-inch Open Frame Panel PC powered by 12th Gen Intel® Core™ i5-1235U, engineered for machine control, factory automation and operator HMI. It provides stable computing, modular I/O and flexible mounting options for OEM and industrial installations.

Key Features

• 15.6" 1366 x 768 open frame display, 400 nits
• 12th Gen Intel® Core™ i5-1235U (up to 4.40 GHz)
• 1 x SODIMM DDR5 4800MHz, up to 32GB
• Integrated dual 2.5 Gbps Ethernet and TPM 2.0
• Multiple I/Os: 2 x USB 3.2 Gen2, serial ports, optional HDMI
• 12V DC input, fanless metal housing for continuous operation

Highlights

• Fanless design for reliable 24/7 operation in industrial environments
• Flexible mounting: open frame (default), panel mount or VESA
• Configurable storage: onboard SSD, M.2 NVMe and SATA expansion
• Optional resistive touch or protection glass to suit different applications

Certifications
CE, FCC

Product Details
Display

• Size: 15.6 inches
• Resolution: 1366 x 768
• Touch / Glass: Resistive touch (optional); protection glass (optional)
• Brightness: 400 nits; Contrast: 500:1; Viewing angles: 85/85/80/80
• Active Area: 344.232 x 195.536 mm

System Specification

• Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 8GB default; optional 16GB / 32GB (1 x SODIMM DDR5 4800MHz)
• Storage: 128GB SSD default; optional 256GB–4TB; 1 x SATA III for 2.5" up to 2TB; 1 x M.2 2280 M-Key (NVMe)
• Ethernet: 2 x Intel® 2.5 Gbps controllers
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 22.04
• WLAN / Bluetooth: optional (M.2 2230 E-Key)

Mechanical

• Dimensions: 366.3 x 248 x 67.5 mm
• Weight: 3.6 kg
• Mounting: Open frame (default); panel mount or VESA optional
• Enclosure: Metal, fanless

Environment

• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Operating Humidity: 10%–90% RH, non-condensing

IO Ports

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x RJ45 2.5 Gbps
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speakers
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: power and storage LEDs; brightness adjustment knob
• Power Input: 1 x 12V DC, 2.5φ DC jack; adapter 12V 120W

Control

• 1 x Power button; 1 x Reset button

Accessories

• 100–240V AC to 12V DC adapter, power cord, VESA screws

Technical specifications

• Model: W15IAD3S-OFA2
• Display: 15.6", 1366x768, 400 nits, 500:1
• CPU: Intel® Core™ i5-1235U
• Memory: up to 32GB DDR5
• Storage & expansion: onboard SSD options, M.2 and SATA
• LAN: Dual 2.5 Gbps Ethernet
• Mounting: Open frame / Panel / VESA
• Enclosure: Metal, fanless
• Certifications: CE, FCC
