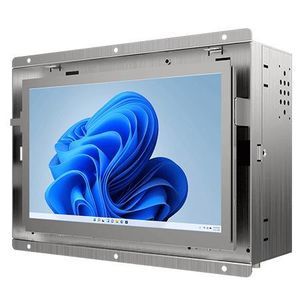

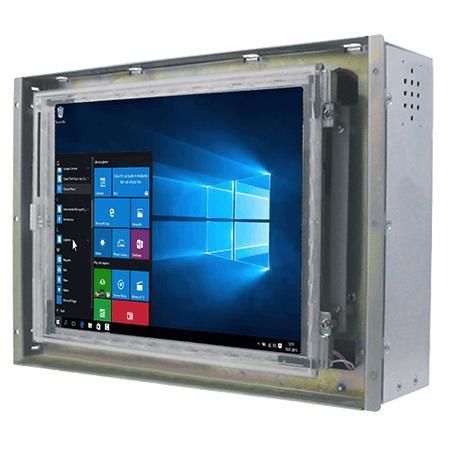

Resistive touch screen panel PC R08IE3S-OFU1

TFT LCD8.4"Intel® Celeron® N6211

Overview
The Winmate R08IE3S-OFU1 is an 8.4 inches open frame industrial Panel PC powered by Intel® Celeron® Elkhart Lake N6211. It is designed for machine control, factory automation and operator HMI, with a fanless metal enclosure, low power consumption and multiple mounting options for OEM and integrator applications.

Key features

• 8.4 inches TFT SVGA (800 x 600) with 600 nits brightness
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM DDR4, up to 16 GB (4 GB default)
• 2 x Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45)
• Storage: M.2 2242 B-key SSD (128 GB default), optional SATA III 2.5" SSD/HDD
• Expansion: M.2 2230 E-key for Wi‑Fi; M.2 2242 B-key for SATA III SSD
• Multiple I/O: COM ports, USB 3.2 Gen2, USB 2.0, optional HDMI

Display

• Size: 8.4 inches
• Touch / Glass: Resistive touch (optional); protection glass without touch (optional)
• Resolution: 800 x 600 (SVGA)
• Brightness: 600 nits
• Contrast Ratio: 600:1
• Viewing Angles: 75 / 75 / 60 / 70
• Active Area: 170.4 x 127.8 mm

System specification

• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 1 x SO-DIMM DDR4 3200 MHz — 4 GB default; options 8 GB / 16 GB; max 16 GB
• Storage: 1 x M.2 2242 B-key SSD 128 GB default; optional 256 GB / 512 GB; 1 x SATA III for 2.5" SSD/HDD up to 1 TB (optional)
• Ethernet: 2 x Intel® controllers (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 22.04
• Wireless: optional WLAN and Bluetooth

Mechanical

• Dimensions: 251.2 x 174.8 x 55 mm
• Weight: 1.6 kg
• Mounting: Open Frame, Panel Mount, VESA Mount
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

IO Ports and Indicators

• USB: 2 x USB 3.2 Gen2x1 (Type-A) plus additional USB 2.0 ports
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2242 B-Key (for SATA III SSD), 1 x M.2 2230 E-Key (for Wi‑Fi)
• Indicators: power LED, storage LED; brightness adjustment knob
• Power input: 1 x 12V DC (2.5φ DC jack)

Control / Buttons

• 1 x Power button
• 1 x Reset button

Accessories (included / optional)

• 100–240V AC to DC adapter (12V 50W)
• Power cord
• VESA screws

Power

• Power rating: 12V DC
• Adapter: 12V 50W

Technical specifications

• Model: R08IE3S-OFU1
• Brand: Winmate
• Display: 8.4" SVGA 800 x 600, 600 nits
• CPU: Intel® Celeron® N6211 (Elkhart Lake)
• Memory: 1 x SO-DIMM DDR4 up to 16 GB
• Storage: M.2 2242 B-key (default 128 GB), optional SATA III 2.5" up to 1 TB
• LAN: 2 x Intel® Ethernet (2.5 Giga)
• I/O: USB3.2 Gen2, USB2.0, COM ports, optional HDMI
• Mounting: Open frame / Panel mount / VESA
• Enclosure: Metal, fanless
• Operating temp: 0°C to 50°C; Storage temp: -10°C to 60°C
• Humidity: 10%–90% RH non-condensing
• Certifications: CE, FCC
