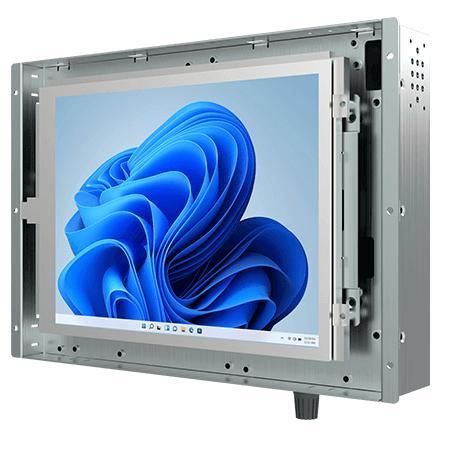

Resistive touch screen panel PC R08IAN3S-OFU1

TFT LCD8.4"Intel® Alder Lake-N

Overview
Winmate R08IAN3S-OFU1 is an 8.4-inch open-frame industrial Panel PC powered by Intel® Alder Lake‑N (N150) designed for machine control, industrial automation and operator HMI in embedded or factory environments. It delivers stable compute and graphics performance, a fanless metal enclosure and versatile I/O for long lifecycle availability and system integration.

Key features

• 8.4" SVGA TFT LCD (800 x 600), 600 nits
• Intel® Alder Lake‑N N150 processor (Intel® Processor N100/N150 family, up to 3.40 GHz)
• 1 x SO‑DIMM DDR5‑4800 (8GB default, up to 16GB)
• 2 x Intel® 2.5 Gigabit Ethernet controllers
• I/O: optional HDMI 2.0b, 1 x USB 3.2 Gen2 Type‑C (DP Alt), 2 x USB 3.2 Gen1/Gen2 Type‑A, 4 x USB 2.0, multiple COM ports
• Mounting: open‑frame (default), panel mount or VESA

Benefits & applications
Designed for integrators and OEMs, the R08IAN3S-OFU1 suits machine control panels, operator HMIs, edge computing and monitoring systems where a compact, fanless and industrial-grade interface is required. Its rich I/O and expansion slots simplify integration into existing automation architectures.

Certifications
CE, FCC.

Technical specifications

• Model: R08IAN3S-OFU1
• Display: 8.4 inches, 800 x 600 (SVGA), 600 nits, contrast 600:1, view angles 75/75/60/70, active area 170.4 x 127.8 mm
• Touch / Glass: Resistive touch (optional) or protection glass without touch (optional)
• Processor: Intel® Alder Lake‑N N150 (Intel® Processor N100/N150 family), 6M Cache, up to 3.40 GHz
• Memory: 1 x SO‑DIMM DDR5‑4800, 8GB default, up to 16GB
• Storage: 1 x M.2 2280 M‑Key NVMe SSD 128GB default (options to 4TB); 1 x SATA III for 2.5" SSD/HDD up to 2TB (available if NVMe absent)
• Ethernet: 2 x Intel® 2.5G RJ45
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 24.04 (Wake on Touch not supported)
• Wireless: optional WLAN/BT via M.2 2230 E‑Key module
• Dimensions: 251 x 174.8 x 55 mm; Weight: 1.6 kg
• Enclosure: metal housing, fanless design
• Operating: 0°C to 50°C; Storage: -10°C to 60°C; Humidity: 10% to 90% RH, non‑condensing
• IO summary: 2 x USB 3.2 Gen1 Type‑A, 1 x USB 3.2 Gen2 Type‑C (DP Alt), additional USB ports as configured; 1 x RS232/422/485 (default RS232) + 1 x RS232; optional HDMI 2.0b; 2 x speakers
• Expansion: 1 x M.2 2280 M‑Key (NVMe), 1 x M.2 2230 E‑Key (Wi‑Fi)
• Indicators & controls: power LED, storage LED, brightness knob, power and reset buttons
• Power: 12V DC input (2.5φ DC jack), adapter 12V 50W (accessory)
• Accessories: AC 100‑240V to DC adapter, power cord, VESA screws (options)
