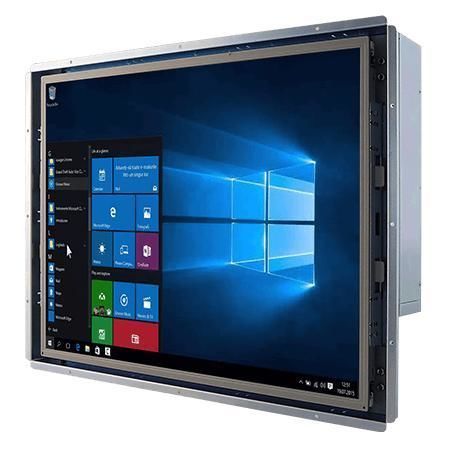

Resistive touch screen panel PC R19IP7T-OFM1

19"Intel® Pentium® N42001280 x 1024

Overview
Winmate R19IP7T-OFM1 is a 19-inch Open Frame Panel PC powered by Intel® Pentium® N4200 (Apollo Lake) designed for machine control, factory automation and operator HMI. It provides flexible storage options, multiple I/Os, low power consumption and a durable metal housing for industrial environments.

Key Features

• Intel® Pentium® N4200 Apollo Lake Processor 1.10 GHz (up to 2.5 GHz)
• 19" industrial open frame touch screen monitor
• Flexible storage: one 2.5" HDD and one SSD socket; M.2 expansion
• Multiple I/Os: 2 x Serial Ports, 4 x USB 3.0 Ports, 2 x Gigabit LAN
• 12 V DC power input with Din4 pin connector
• Display support: DP 4096 x 2160 @ 60 Hz; HDMI 3840 x 2160 @ 30 Hz (optional)

Product Details
Resistive Touch / Optional Protective Glass: offers flexible surface options such as resistive touch or protection glass without touch function for operator convenience in industrial settings.
Low Power Consumption: designed for efficient heat dissipation and long-term operation in production facilities.
Mounting Options: supports open frame (default), panel mount (optional) and VESA mount (optional) to fit different integration needs.

Caractéristiques / spécifications techniques

• Display — Size: 19.0 inches
• Display — Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without touch (Optional)
• Display — Resolution: 1280 x 1024
• Display — Panel Brightness: 250 nits
• Display — Contrast Ratio: 1000:1
• Display — View Angles: 85, 85, 80, 80
• Display — Active Area: 376.32 x 301.06 mm
• Processor: Intel® Pentium® N4200 1.1 GHz (burst up to 2.5 GHz)
• Memory: Dual-channel (non-ECC) SO-DIMM, up to 16 GB
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB; 2 x SATA III for 2.5" SSD/HDD (optional, RAID support)
• Ethernet Controller: 2 x Intel® Ethernet Controller (2 x Gigabit LAN RJ45)
• Security: TPM 2.0
• Operating System: Windows 10 IoT Enterprise (64-bit) (Optional); Linux Ubuntu 20.04 (Optional)
• WLAN / BT: Support (Optional)
• Mechanical — Dimensions: 445 x 355 x 71 mm
• Mechanical — Weight: 4.8 kg
• Mechanical — Mounting: Open frame (Default); Panel mount (Optional); VESA mount (Optional)
• Enclosure: Metal housing
• Cooling System: Fanless design
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports — USB: 4 x USB3.2 Gen1x1 (Type-A)
• IO Ports — Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• IO Ports — LAN: 2 x Gigabit LAN (RJ45)
• IO Ports — Video: 1 x DP1.2 (Default); 1 x HDMI 1.4 (Optional); 1 x VGA (Optional)
• IO Ports — Audio: 1 x Mic in; 1 x Line out; 2 x Speaker
• Expansion — M.2 / PCIe: 1 x M.2 2242 B-key (for SATA III SSD); 1 x M.2 2230 E-key (for Wi-Fi module); 1 x PCIe 2.0 (x1) slot
• Indicator: 1 x LED power; 1 x LED storage
• Brightness Adjustment: 1 x Brightness Knob
• Power Input: 1 x 12 V DC, Din4 pin connector
• Power Rating / Adapter: 12 V DC; adapter 12 V 84 W
• Control Buttons: 1 x Power Button; 1 x Reset Button
• Accessories: 100~240V AC to DC Adapter; Power Cord; VESA screws
