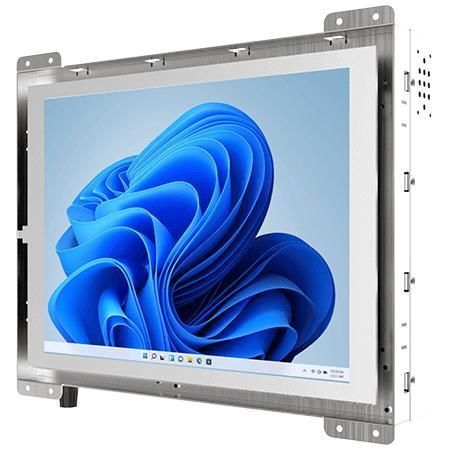

Resistive touch screen panel PC R10IAN3S-OFT2

TFT LCD10.4"Intel® Alder Lake-N

Overview
Winmate R10IAN3S-OFT2 is a 10.4-inch open frame panel PC for machine control, factory automation and operator HMI. Based on Intel® Alder Lake‑N platforms (N100 default, N150 optional), it provides dependable computing, integrated UHD graphics and versatile I/O for industrial and embedded applications.

Key features

• 10.4" XGA TFT LCD, 500 nits
• Intel® Alder Lake‑N (N100 default, N150 optional)
• 1 x SO‑DIMM DDR5‑4800, up to 16 GB
• Dual 2.5 Gigabit Ethernet
• Multiple I/O: USB Type‑C (DP‑Alt), USB 3.2, USB 2.0, COM ports, optional HDMI
• Open frame default; Panel and VESA mount optional

Product details
The R10IAN3S-OFT2 delivers clear industrial visuals with a 1024×768 XGA TFT and 500 nits brightness for reliable readability. Storage is modular with NVMe support and an optional 2.5" SATA bay (available when NVMe is not used). Memory is configurable via 1 SO‑DIMM DDR5‑4800 up to 16 GB. Dual Intel® 2.5 GbE provides high‑speed network connectivity for automation systems. The unit features a fanless design and metal enclosure for stable field deployment.

Certifications

• CE
• FCC

Technical specifications

• Model: R10IAN3S-OFT2
• Display: 10.4 inches, 1024 x 768 (XGA)
• Panel brightness: 500 nits; Contrast ratio: 1000:1; View angles: 88/88/88/88; Active area: 210.4 x 157.8 mm
• Touch / Glass: Resistive touch optional or protection glass optional
• Processor: Intel® N100 (default, up to 3.40 GHz); Intel® N150 optional (up to 3.60 GHz)
• Memory: 4 GB default; optional 8 GB / 16 GB (1 x SO‑DIMM DDR5‑4800)
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (up to 2 TB) when NVMe absent
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet
• USB: 1 x USB 3.2 Gen2 Type‑C (DP Alt. mode); 2 x USB 3.2 Gen1 Type‑A; additional USB 2.0 ports
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0b (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2230 E‑Key (Wi‑Fi module)
• Indicators & controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Security: TPM 2.0
• Operating systems (optional): Windows 11 IoT Enterprise 64‑bit; Windows 11 Pro 64‑bit; Linux Ubuntu 24.04 (Wake on Touch not supported)
• WLAN / BT: optional via M.2 slot
• Mechanical: 260 x 215 x 50 mm; Weight 1.9 kg; Metal housing; Fanless
• Mounting: Open frame (default); Panel mount and VESA mount optional
• Environment: Operating humidity 10%–90% RH non‑condensing; Operating temp 0°C–50°C; Storage temp −10°C–60°C
• Power: 1 x 12V DC (2.5φ DC jack); Adapter 12V 50W (example)
• Accessories: 100–240V AC to DC adapter, power cord, VESA screws (depending on configuration)
