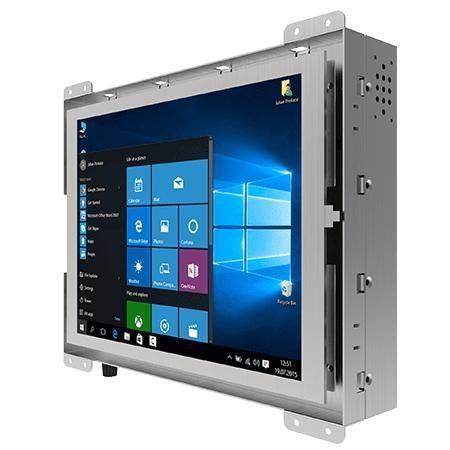

Resistive touch screen panel PC R10IT3S-OFT2

10.4"Intel® Core™ i5-1135G71024 x 768

Overview
The Winmate R10IT3S-OFT2 is a 10.4-inch Open Frame Panel PC powered by an Intel® Core™ i5-1135G7 processor. Engineered for machine control, factory automation and operator HMI integration, it provides fanless cooling, flexible mounting and multiple expansion options to support embedded and industrial installations.

Key Features

• 10.4" TFT XGA display (1024 x 768), 500 nits
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Fanless cooling and low power design
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Integrated dual Intel® Gigabit Ethernet (2 x 2.5 Giga LAN)
• M.2 expansion: Key M for M.2 2242 SATA III; optional M.2 2280 NVMe

Surface options & Mounting
Offers selectable front surface configurations: resistive touch panel or protection glass (non-touch) to match application needs. Default configuration is open frame for cabinet or chassis integration; panel mount and VESA mounting are available as options.

Cooling, Power & Reliability
Fanless thermal design and low power consumption support continuous operation in industrial environments. Metal housing and industrial-grade components ensure long-term field reliability. TPM 2.0 is available for platform security.

Certifications

• CE
• FCC

Applications
Recommended for machine control panels, operator HMIs, kiosks, embedded automation systems and OEM integrations requiring compact open-frame displays with industrial I/O and long lifecycle support.

Technical specifications

• Model: R10IT3S-OFT2; Brand: Winmate
• Display — Size: 10.4 inches; Resolution: 1024 x 768; Brightness: 500 nits; Contrast: 1000:1; View angles: 88/88/88/88; Active area: 210.4 x 157.8 mm
• Touch / Glass — Resistive touch (optional); Protection glass without touch (optional)
• Processor — Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz)
• Memory — 4 GB default; options: 8/16/32 GB (1 x SO-DIMM, DDR4 3200 MHz, max 32 GB)
• Storage — 128 GB SSD default; optional: 256/512 GB, 1/2/4 TB; 1 x SATA III for 2.5" SSD/HDD (optional, up to 2 TB)
• Ethernet — 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security — TPM 2.0
• OS — Optional: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Wake on Touch not supported)
• Wireless — WLAN / Bluetooth support optional (M.2 2230 E-Key)
• Dimensions & Weight — 260 x 215 x 51 mm; 1.9 kg
• Mounting — Open frame (default); Panel mount (optional); VESA mount (optional)
• Enclosure — Metal housing
• Cooling — Fanless design
• Environment — Operating humidity: 10%–90% RH non-condensing; Operating temp: 0°C to 50°C; Storage temp: -10°C to 60°C
• IO Ports — USB: 2 x USB3.2 Gen2 Type-A; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x 2.5 Giga LAN RJ45; Video: 1 x HDMI 2.0 (optional); Audio: 2 x speaker
• Expansion — 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x M.2 Key M for M.2 2242 SATA III
• Indicators & Controls — Power LED; Storage LED; Brightness adjustment knob; Power and Reset buttons
• Power — Input: 12V DC (2.5φ jack); Adapter: 12V 120W (included)
• Accessories — 100~240V AC–DC adapter, power cord, VESA screws
