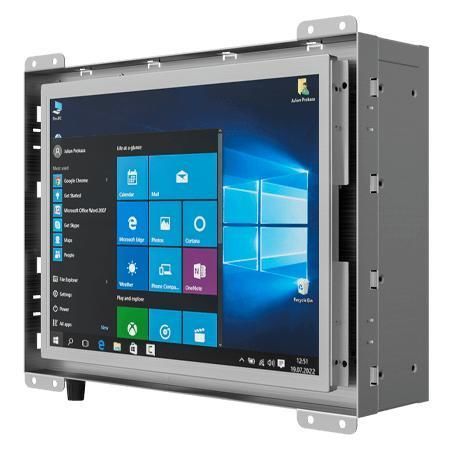

Resistive touch screen panel PC R10IAD3S-OFT2

LCDLED backlight10.4"

Overview Winmate R10IAD3S-OFT2 is a 10.4-inch Open Frame Panel PC powered by 12th Gen Intel® Core™ i5-1235U, designed for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators who need reliable, long-lifecycle embedded computing for rugged or mission-critical environments.

Key Features

• 10.4-inch 1024 x 768 open frame display
• 12th Gen Intel® Core™ i5-1235U processor (up to 4.40 GHz)
• 1 x SODIMM DDR5 4800MHz, supports up to 32GB
• Integrated dual Intel® 2.5 Gigabit Ethernet
• Multiple I/O including 2 x USB 3.2 Gen2x1 and serial ports
• 12 V DC power input; fanless metal housing

Product Highlights High computing performance based on Intel Alder Lake architecture combined with a fanless design for efficient heat dissipation and low power operation. Configurable surface options (resistive touch or protective glass) and flexible mounting: open frame by default, optional panel or VESA mounting for OEM integration.

Certifications

• CE
• FCC

Technical specifications

• Display — Size: 10.4-inch; Resolution: 1024 x 768; Touch/Glass: Resistive Touch (optional) / Protection Glass without touch (optional); Brightness: 500 nits; Contrast: 1000:1; View angles: 88/88/88/88; Active area: 210.4 x 157.8 mm
• System — Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz); Memory: 8GB (default), options: 16GB, 32GB; Memory interface: 1 x SODIMM DDR5 4800MHz; Storage: 128GB SSD (default), optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Connectivity & Security — Ethernet: 2 x Intel® 2.5GbE; WLAN/Bluetooth: optional; Security: TPM 2.0; Video: 1 x HDMI 2.0 (optional)
• Mechanical — Dimensions: 260 x 215 x 51 mm; Weight: 1.9 kg; Mounting: Open frame (default), Panel mount (optional), VESA mount (optional); Enclosure: Metal housing; Cooling: Fanless design
• Environment — Operating humidity: 10%–90% RH non‑condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• I/O Ports — USB: 2 x USB 3.2 Gen2x1 (Type-A); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x 2.5 Giga LAN RJ45; Audio: 2 x Speaker; Expansion: 1 x M.2 2280 M-Key (NVMe SSD), 1 x M.2 2230 E-Key (Wi‑Fi module); Indicators: LED power, LED storage; Brightness: adjustment knob; Power input: 1 x 12V DC (2.5φ DC jack)
• Control & Power — Buttons: 1 x Power, 1 x Reset; Power rating: 12V DC; Adapter: 12V 120W
• Accessories — 100~240V AC to DC adapter, power cord, VESA screws
