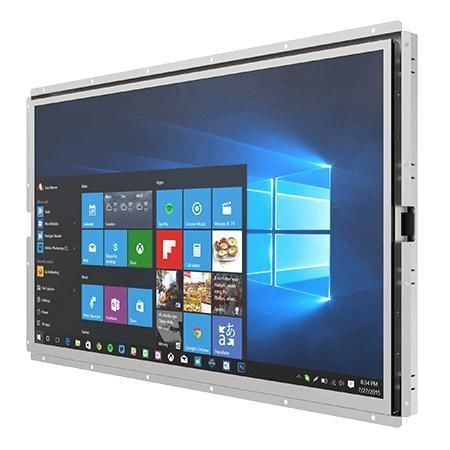

Resistive touch screen panel PC W24IAD7T-OFA2

24"Intel® Core™ i9-12900TEIntel® Core™ i7-12700TE

Overview
Winmate W24IAD7T-OFA2 is a 24-inch Open Frame Panel PC engineered for machine control, factory automation and operator HMI. It integrates 12th/13th/14th‑generation Intel® Core™ processor options, DDR5 memory and NVMe storage to deliver industrial-grade performance, flexible I/O and long lifecycle availability.

Highlights

• Multiple Intel® Core™ Alder Lake / Raptor Lake processor choices for scalable compute performance.
• Surface options: resistive touch or protection glass to suit different operator environments.
• Low power consumption with fan-assisted cooling for continuous industrial operation.
• Flexible mounting: open frame (default), optional panel mount or VESA mount.

Key features

• 24” 1920 x 1080 Open Frame display, 250 nits, 3000:1 contrast
• 12th/13th/selected 14th Gen Intel® Core™ processors (i3 / i5 / i7 / i9 options)
• Memory: 2 x SO‑DIMM DDR5 4800 MHz — up to 64 GB (Max. 32 GB per slot)
• Storage: M.2 2280 NVMe SSD (256 GB default; options to 2 TB) and optional 2 x SATA III for 2.5" drives
• Network: 2 x Intel® 2.5 Gigabit Ethernet controllers
• Multi-display support: DP 1.4a (default), HDMI 2.0b (optional)
• I/O: 4 x USB 3.2 Gen2x1 (Type-A), serial ports (RS232/422/485), audio
• Security: TPM 2.0
• Power: 12 V DC input (Din4), adapter 12V 220W
• Mechanical: Metal housing, dimensions 576 x 344 x 78 mm, weight ~6.3 kg
• Operating conditions: 0°C to 50°C, 10%–90% RH non‑condensing

Certifications

• CE
• FCC

Technical specifications

• Model: W24IAD7T-OFA2
• Display size: 24.0 inches; Resolution: 1920 x 1080; Active area: 527.04 x 296.46 mm
• Touch / Glass: Resistive Touch Screen (optional); Protection Glass without touch (optional)
• Processor examples: Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE; additional T-series options listed
• Chipset: Intel® R680E
• Memory default / options: 8 GB default; optional 16/32/64 GB
• Storage default / options: M.2 2280 NVMe 256 GB default; 512 GB / 1 TB / 2 TB options; optional 2 x SATA III
• Ethernet: 2 x 2.5 Giga LAN RJ45
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Video outputs: DP1.4a (DP++), up to 4096 x 2160 @60Hz; HDMI 2.0b optional
• I/O ports: 4 x USB 3.2 Gen2x1, 1 x RS232/422/485 (default RS232) + 1 x RS232, Mic in, Line out
• Buttons: Power, Reset
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws (included/optional)
