Resistive touch screen panel PC R10IE3S-OFP1
TFT LCD10.4"Intel® Celeron® N6211

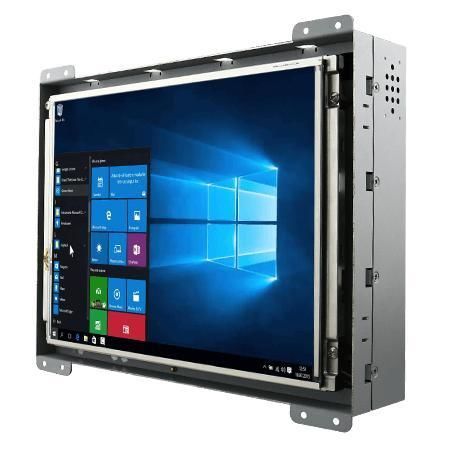

Resistive touch screen panel PC - R10IE3S-OFP1 - Winmate, Inc. - TFT LCD / 10.4" / Intel® Celeron® N6211
Resistive touch screen panel PC - R10IE3S-OFP1 - Winmate, Inc. - TFT LCD / 10.4" / Intel® Celeron® N6211
Resistive touch screen panel PC - R10IE3S-OFP1 - Winmate, Inc. - TFT LCD / 10.4" / Intel® Celeron® N6211 - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
TFT LCD, resistive touch screen
Display size
10.4"
Processor
Intel® Celeron® N6211
Resolution
800 x 600
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
open frame
Mounting
VESA mounting
Applications
industrial
Other characteristics
Ethernet, RJ45, WiFi, USB 2.0
Memory size

Min.: 4 GB

Max.: 16 GB

Description

Overview
  • Winmate R10IE3S-OFP1 is a 10.4" open frame panel PC for machine control, factory automation and operator HMI, powered by the low-power Intel® Celeron® Elkhart Lake N6211 processor.
  • Engineered for industrial integration with flexible mounting, optional resistive touch or protection glass, fanless cooling and long lifecycle support for OEMs and system integrators.


Key features
  • 10.4" TFT SVGA display (800 x 600), 600 nits, 400:1 contrast
  • Intel® Celeron® N6211 processor (up to 3.0 GHz)
  • 1 x SO-DIMM, up to 16 GB DDR4; default 4 GB
  • 2 x Intel® Ethernet controllers (2 x 2.5 G LAN)
  • 2 x USB 3.2 Gen2x1 (Type-A), 4 x USB 2.0, multiple serial (RS232/422/485)


Product details
  • Display options: 10.4" TFT SVGA, 800 x 600, active area 211.2 x 158.4 mm, viewing angles 70/70/70/60.
  • Touch / glass: optional resistive touch or optional protective glass without touch function.
  • Memory & storage: default 4 GB (configurable up to 16 GB); default 128 GB SSD (options to 2 TB); 1 x SATA III for 2.5" SSD/HDD (optional); M.2 2242 B-Key (SATA) and M.2 2230 E-Key (Wi‑Fi).
  • I/O and expansion: 2 x USB 3.2 Gen2x1, 4 x USB 2.0, serial ports, 2 x 2.5 G LAN RJ45, optional HDMI 2.0, audio with 2 speakers, brightness knob and LED indicators.
  • Security & OS: TPM 2.0 supported; optional OS images include Windows 11 IoT Enterprise (64-bit), Windows 11 Pro, Windows 10 IoT Enterprise and Linux Ubuntu 22.04.
  • Mechanical & mounting: metal housing, 260 x 215 x 50 mm, 1.9 kg; open frame default with optional panel or VESA mounting; fanless thermal design.
  • Environment & certification: operating 0°C to 50°C, humidity 10%–90% RH non‑condensing; storage -10°C to 60°C; CE and FCC certified.
  • Accessories: 100–240V AC to DC adapter, power cord and VESA screws.


Technical specifications
  • Model: R10IE3S-OFP1
  • Display size: 10.4"
  • Resolution: 800 x 600 (SVGA)
  • Brightness: 600 nits; Contrast: 400:1; Viewing angles: 70/70/70/60
  • Active area: 211.2 x 158.4 mm
  • Touch / Glass: Resistive touch (optional); Protection glass (optional)
  • Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
  • Memory: 4 GB default; options 8 GB, 16 GB; 1 x SO-DIMM, max 16 GB DDR4
  • Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB; 1 x SATA III (2.5") optional
  • Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 G LAN)
  • USB: 2 x USB 3.2 Gen2x1 (Type-A); 4 x USB 2.0
  • Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
  • Video: 1 x HDMI 2.0 (optional)
  • Audio: 2 x speaker
  • Expansion: 1 x M.2 2242 B-Key (SATA SSD); 1 x M.2 2230 E-Key (Wi‑Fi)
  • Indicators & controls: power & storage LEDs; brightness adjustment knob; power and reset buttons
  • Power input: 1 x 12V DC, 2.5φ DC jack; adapter 12V 50W
  • Enclosure: metal housing; cooling: fanless
  • Dimensions: 260 x 215 x 50 mm; Weight: 1.9 kg
  • Mounting: open frame (default); panel mount (optional); VESA mount (optional)
  • Operating humidity: 10%–90% RH (non-condensing)
  • Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
  • Security: TPM 2.0
  • Certifications: CE, FCC
