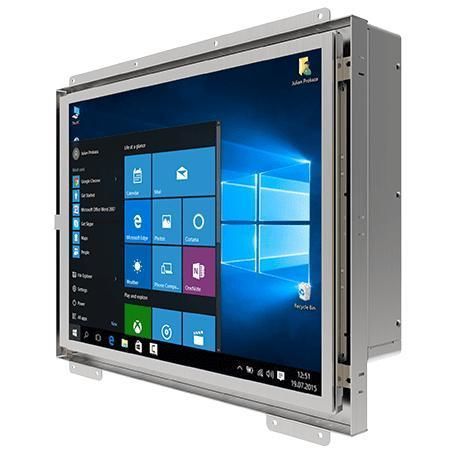

Panel PC with touch screen R15IAD3S-OFC3

resistive touch screen15"Intel® Core i5-1235U

Overview
Winmate R15IAD3S-OFC3 is a 15-inch Open Frame Panel PC powered by Intelreg Core i5-1235U (12th Gen) designed for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators requiring reliable hardware for embedded or mission-critical installations.

Key features

• 15" 1024 x 768 Open Frame display, 300 nits
• 12th Gen Intelreg Core i5-1235U processor (up to 4.40 GHz)
• 1 x SODIMM DDR5 4800MHz, supports up to 32GB
• Integrated dual 2.5 Gigabit Ethernet
• Multiple I/Os: 2 x USB 3.2 Gen2x1, serial ports, optional HDMI
• 12V DC power input; fanless metal housing

Product highlights / Overview details
Open-frame Panel PC with Alder Lake CPU for efficient multitasking and sustained industrial operation.
Optional input surfaces: resistive touch or protection glass without touch function to fit application requirements.
Low power consumption and passive cooling for continuous operation in production environments.
Flexible mounting: open frame (default), optional panel mount or VESA mount.

Display

• Size: 15.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88,88,88,88
• Active Area: 304.1 x 228.1 mm

System Specification

• Processor: Intelreg Core i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 8GB (Default); optional 16GB or 32GB
• Storage: 128GB SSD (Default); optional 256GB, 512GB, 1TB, 2TB, 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet controller: 2 x Intelreg Ethernet Controller (2.5 Gbit)
• Security: TPM 2.0
• Operating System: Windows 11 IoT Enterprise (Optional); Windows 11 Pro (Optional); Linux Ubuntu 22.04 (Optional)
• WLAN / Bluetooth: Support (Optional)

Mechanical

• Dimensions: 357.6 x 292 x 62 mm
• Weight: 4.1 kg
• Mounting: Open frame (Default); Panel mount (Optional); VESA mount (Optional)
• Enclosure: Metal housing
• Cooling System: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0C to 50C
• Storage Temperature: -10C to 60C

Certification

• CE
• FCC

I/O Ports

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45 connectors
• Video: 1 x HDMI 2.0 (Optional)
• Audio: 2 x Speaker
• Expansion: 1 x M.2 2280 M-Key slot (for NVMe SSD); 1 x M.2 2230 E-Key slot (for Wi-Fi module)
• Indicator: 1 x LED for power; 1 x LED for storage
• Brightness knob: 1 x Brightness Adjustment Knob
• Power Input: 1 x 12V DC, 2.5f DC jack

Control

• Buttons: 1 x Power Button; 1 x Reset Button

Accessories

• 100~240V AC to DC Adapter
• Power Cord
• VESA screws

Power

• Power Rating: 12V DC
• Adapter: 12V 120W

Technical specifications

• Model: R15IAD3S-OFC3
• Brand: Winmate
• Display size / resolution: 15.0" / 1024 x 768
• Processor: Intelreg Core i5-1235U (up to 4.40 GHz)
• Memory: DDR5 SODIMM, up to 32GB (1 x SODIMM, DDR5 4800MHz)
• Storage: 128GB SSD default; multiple optional capacities and SATA III support
• LAN: Dual 2.5GbE
• I/O: 2 x USB3.2 Gen2x1, serial ports, optional HDMI 2.0, audio speakers
• Mounting: Open frame / panel mount / VESA
• Dimensions / Weight: 357.6 x 292 x 62 mm / 4.1 kg
• Operating temp/humidity: 0C to 50C; 10% 60% RH non-condensing
• Power input: 12V DC (2.5f DC jack); adapter 12V 120W
• Certifications: CE, FCC
