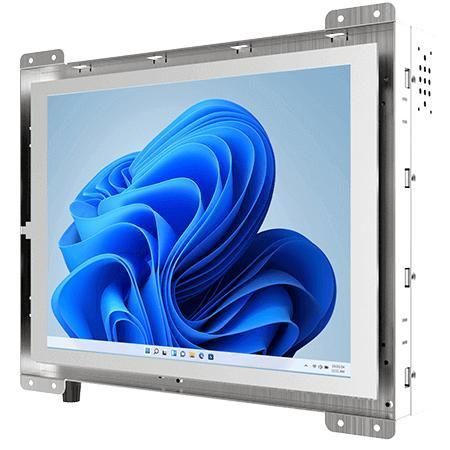

Resistive touch screen panel PC R10IAN3S-OFP1

TFT LCD10.4"Intel® Alder Lake-N

Overview
The Winmate R10IAN3S-OFP1 is a 10.4-inch open‑frame industrial Panel PC engineered for machine control, factory automation and operator HMIs. It pairs Intel® Alder Lake‑N processors with an industrial XGA TFT panel to deliver reliable computing, clear visualization and flexible integration for embedded and OEM applications.

Key features

• 10.4" XGA (800 x 600) TFT LCD, 600 nits
• Intel® Alder Lake‑N processors (N100 default, N150 optional)
• SO‑DIMM DDR5‑4800 up to 16 GB
• Dual Intel® 2.5 Gigabit Ethernet
• Multiple display & USB: HDMI, USB 3.2 Gen2 Type‑C (DP‑Alt), USB 3.2 Type‑A ports
• Fanless metal housing; open‑frame, panel or VESA mounting

Product highlights & applications

• Designed for OEMs, system integrators and industrial operators requiring long lifecycle availability and stable field operation.
• Clear industrial visualization with high‑brightness XGA panel suitable for compact installations.
• Scalable storage and memory options (NVMe/SSD, optional SATA for 2.5" drives), TPM 2.0 and optional wireless via M.2 E‑Key.

IO & Connectivity

• LAN: 2 x 2.5 Giga LAN (RJ45)
• USB: 2 x USB 3.2 Gen1 Type‑A; 1 x USB 3.2 Gen2 Type‑C (DP Alt Mode)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0b (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2230 E‑Key slot (Wi‑Fi module)
• Indicators & controls: power LED, storage LED, brightness adjustment knob

Certifications

• CE
• FCC

Accessories

• 100~240V AC to 12V DC adapter
• Power cord
• VESA screws

Technical specifications

• Model: R10IAN3S-OFP1 — Brand: Winmate
• Display: 10.4 inches, 800 x 600 (XGA); brightness 600 nits; contrast 400:1; viewing angles 70/70/70/60; active area 211.2 x 158.4 mm
• Touch/Glass: Resistive touch optional; protection glass optional
• Processor: Intel® N100 (default) up to 3.40 GHz; Intel® N150 (optional) up to 3.60 GHz
• Memory: 4 GB default; options 8/16 GB via 1 x SO‑DIMM DDR5‑4800 (max 16 GB)
• Storage: 128 GB SSD default; options up to 4 TB NVMe/SSD; 1 x SATA III for 2.5" SSD/HDD (up to 2 TB, only if NVMe not present)
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64‑bit; Windows 11 Pro 64‑bit; Linux Ubuntu 24.04 (Linux option does not support Wake on Touch)
• Mechanical: 260 x 215 x 50 mm; weight 1.9 kg; metal housing; fanless
• Mounting: Open frame (default); panel mount or VESA mount optional
• Environment: Operating humidity 10%–90% RH non‑condensing; operating temperature 0°C to 50°C; storage temperature ‑10°C to 60°C
• Power: 12V DC input (2.5φ DC jack); adapter 12V 50W
• Certifications: CE, FCC
